Description
Brand - RBC
Item Number - VTR 2 RBC
Category - Track Runner (V-Grooved, Stud Style)
Inside Bearing Type - Ball Bearing (BB)

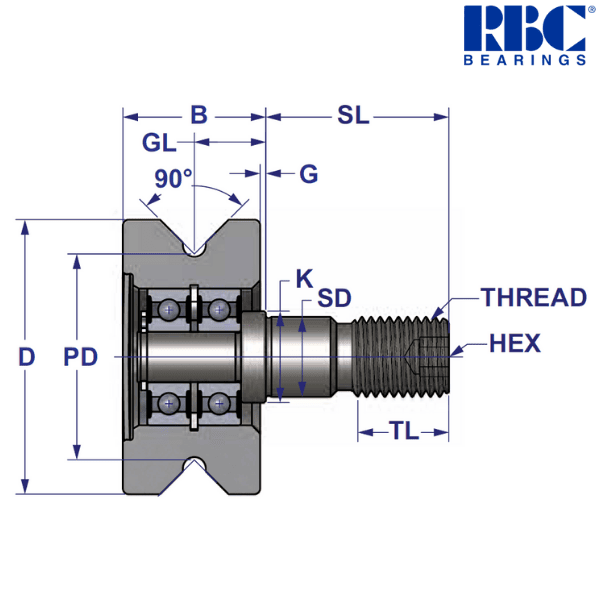

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Roller (D) - 2 inch
Width of Roller (B) - 0.844 inch
Shank Diameter (SD) - 0.500 (+.000 to -.001) inch
Shank Length (SL) - 1.25 inch
Minimum Eff. Length Thread Length (TL) - 0.625 inch
Thread Class 2A - 1/2-20
Hex - 0.1875 inch
Shoulder Length (G) - 0.031 inch
Shoulder Diameter (K) - 0.625 inch
Groove Point Diameter (PD) - 1.375 inch
Groove Location (GL) - 0.422 inch
Dynamic Radial Load - 1350 lbs
Static Thrust Load - 370 lbs
Static Radial Load - 600 lbs
Equivalent Part Number in OSBORN - VLR 2

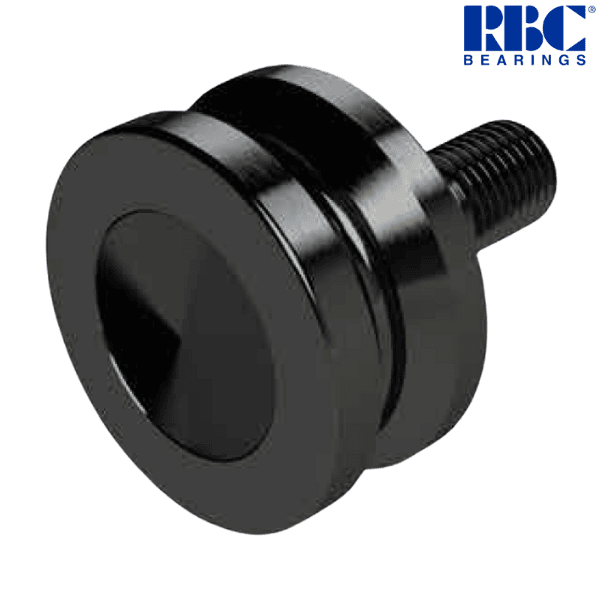

♦ ♦ Images are for representation purposes only
