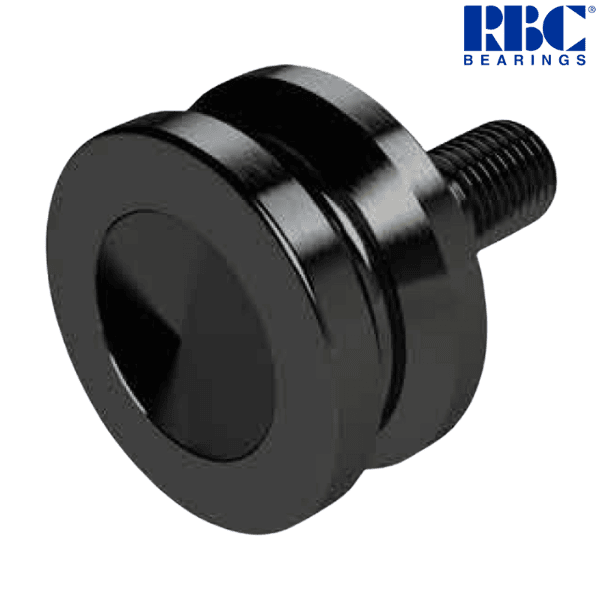

VTR 1 1/2 RBC

Brand - RBC
Item Number - VTR 1 1/2 RBC
Category - Track Runner (V-Grooved, Stud Style)
Inside Bearing Type - Ball Bearing (BB)

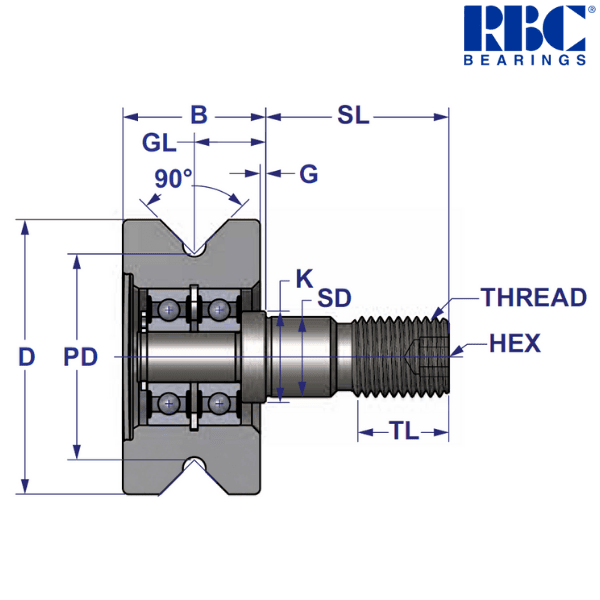

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Roller (D) - 1.5 inch
Width of Roller (B) - 0.781 inch
Shank Diameter (SD) - 0.437 (+.000 to -.001) inch
Shank Length (SL) - 1 inch
Minimum Eff. Length Thread Length (TL) - 0.5 inch
Thread Class 2A - 7/16-20
Hex - 0.1875 inch
Shoulder Length (G) - 0.031 inch
Shoulder Diameter (K) - 0.5 inch
Groove Point Diameter (PD) - 1.125 inch
Groove Location (GL) - 0.391 inch
Dynamic Radial Load - 630 lbs
Static Thrust Load - 140 lbs
Static Radial Load - 230 lbs
Equivalent Part Number in OSBORN - VLR 1 - 1/2

♦ ♦ Images are for representation purposes only
