VSI201094-N INA


Country Of Origin: EU
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - INA
Item Number - VSI201094-N INA
Category - Slewing Ring Four Point Contact Bearing
Weight (kg) - 91

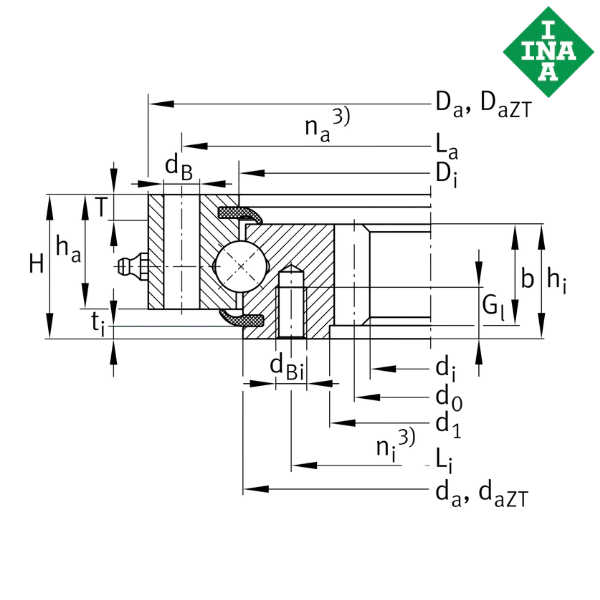

Outer Diameter (Da) mm - 1166
Outside Diameter Lower Tolerance (mm) - -0.7
Dimension (DaZT) mm - 1164
Inner Diameter (di) mm - 984
Inner Diameter Outer Ring (Di) mm - 1095.5
Inner Diameter Outer Ring Upper Tolerance (mm) - 0.7
Outside Diameter Inner Ring (da) mm - 1092.5
Outside Diameter Inner Ring Lower Tolerance (mm) - -0.7
Dimension (daZT) mm - 1091
Pitchcircle Diameter Fixing Holes Outer Ring (La) mm - 1140
Number of Fixing Holes in Outer Ring (na) - 48
Pitchcircle Diameter Fixing Holes Inner Ring (Li) mm - 1055
Number of Fixing Holes in Inner Ring (ni) - 48
Maximum Radial Load Fixing Screws (Friction Locking) (Fr) kN - 198.2
Pitch Circle Diameter Gearing (d0) mm - 1000
Modul of Gearing (m) mm - 8
Number of Teeth (z) - 125
Maximum Tooth Force Root Fatigue Strenght (at a Shock Factor of 1,2) (Fz norm) kN - 31.4
Maximum Tooth Force Against Tooth Fracture (at a Shock Factor of 1,35) (Fz max) kN - 46.7

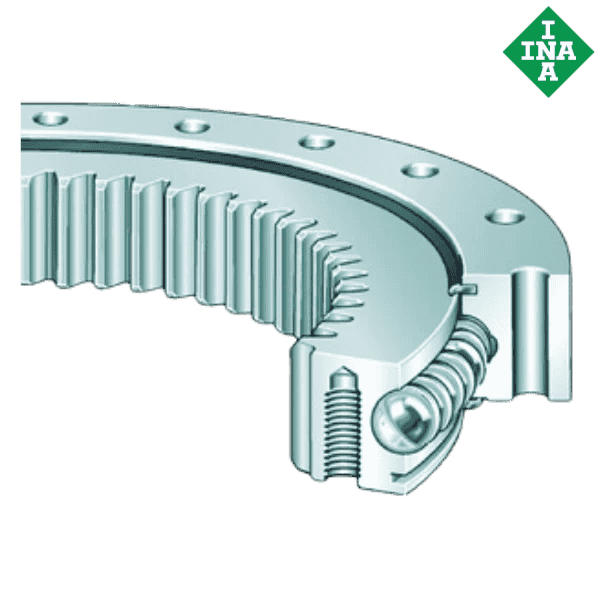

** Images are for representation purposes only
