VSI200844-N INA


Country Of Origin: EU
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - INA
Item Number - VSI200844-N INA
Category - Slewing Ring Four Point Contact Bearing
Weight (kg) - 69

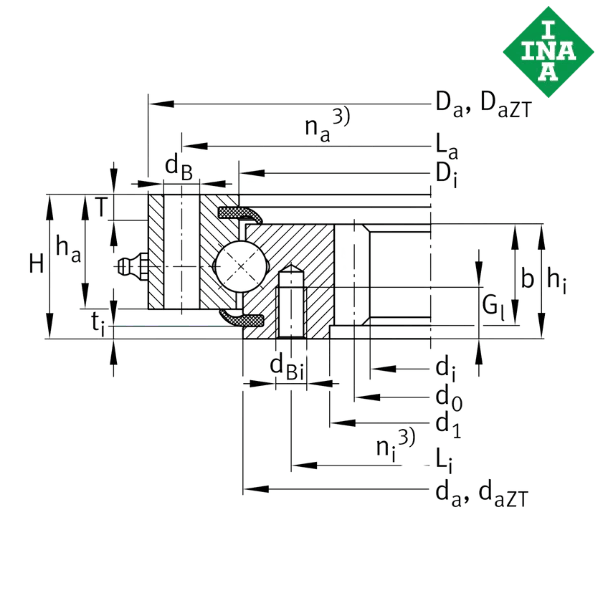

Outer Diameter (Da) mm - 916
Outside Diameter Lower Tolerance (mm) - -0.6
Dimension (DaZT) mm - 914
Inner Diameter (di) mm - 736
Inner Diameter Outer Ring (Di) mm - 845.5
Inner Diameter Outer Ring Upper Tolerance (mm) - 0.6
Outside Diameter Inner Ring (da) mm - 842.5
Outside Diameter Inner Ring Lower Tolerance (mm) - -0.6
Dimension (daZT) mm - 841
Pitchcircle Diameter Fixing Holes Outer Ring (La) mm - 890
Number of Fixing Holes in Outer Ring (na) - 40
Pitchcircle Diameter Fixing Holes Inner Ring (Li) mm - 805
Number of Fixing Holes in Inner Ring (ni) - 40
Maximum Radial Load Fixing Screws (Friction Locking) (Fr) kN - 165.2
Pitch Circle Diameter Gearing (d0) mm - 752
Modul of Gearing (m) mm - 8
Number of Teeth (z) - 94
Maximum Tooth Force Root Fatigue Strenght (at a Shock Factor of 1,2) (Fz norm) kN - 31.4
Maximum Tooth Force Against Tooth Fracture (at a Shock Factor of 1,35) (Fz max) kN - 46.7

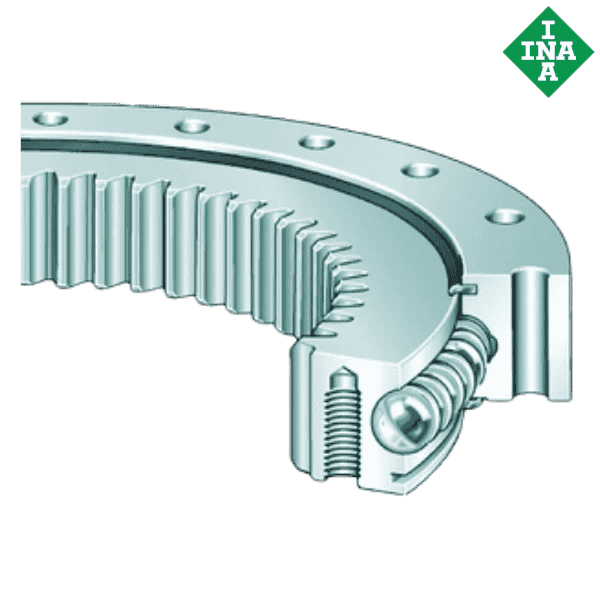

** Images are for representation purposes only
