VSI200644-N INA


Country Of Origin: EU
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - INA
Item Number - VSI200644-N INA
Category - Slewing Ring Four Point Contact Bearing
Weight (kg) - 50

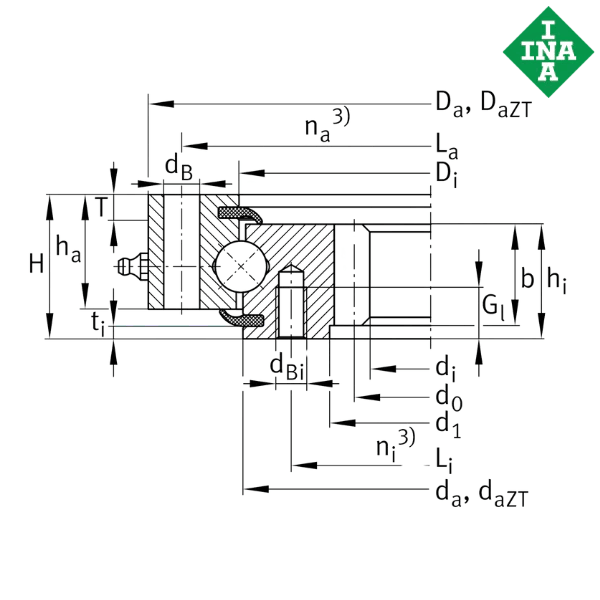

Outer Diameter (Da) mm - 716
Outside Diameter Lower Tolerance (mm) - -0.6
Dimension (DaZT) mm - 714
Inner Diameter (di) mm - 546
Inner Diameter Outer Ring (Di) mm - 645.5
Inner Diameter Outer Ring Upper Tolerance (mm) - 0.6
Outside Diameter Inner Ring (da) mm - 642.5
Outside Diameter Inner Ring Lower Tolerance (mm) - -0.6
Dimension (daZT) mm - 641
Pitchcircle Diameter Fixing Holes Outer Ring (La) mm - 690
Number of Fixing Holes in Outer Ring (na) - 36
Pitchcircle Diameter Fixing Holes Inner Ring (Li) mm - 605
Number of Fixing Holes in Inner Ring (ni) - 36
Maximum Radial Load Fixing Screws (Friction Locking) (Fr) kN - 148.7
Pitch Circle Diameter Gearing (d0) mm - 558
Modul of Gearing (m) mm - 6
Number of Teeth (z) - 93
Maximum Tooth Force Root Fatigue Strenght (at a Shock Factor of 1,2) (Fz norm) kN - 23.7
Maximum Tooth Force Against Tooth Fracture (at a Shock Factor of 1,35) (Fz max) kN - 35

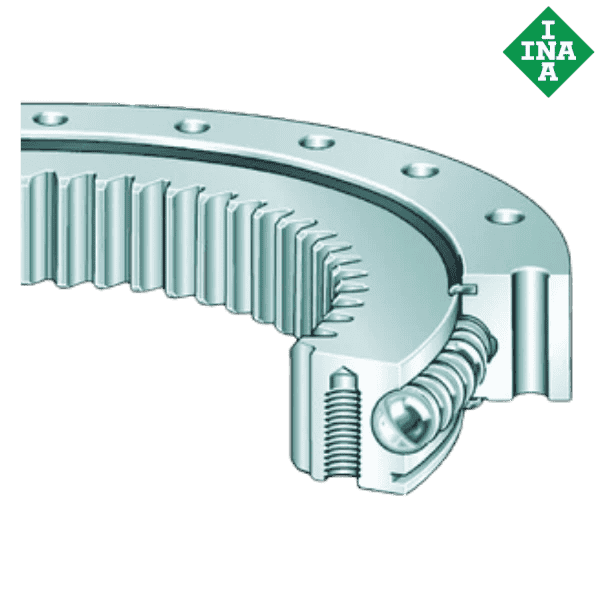

** Images are for representation purposes only
