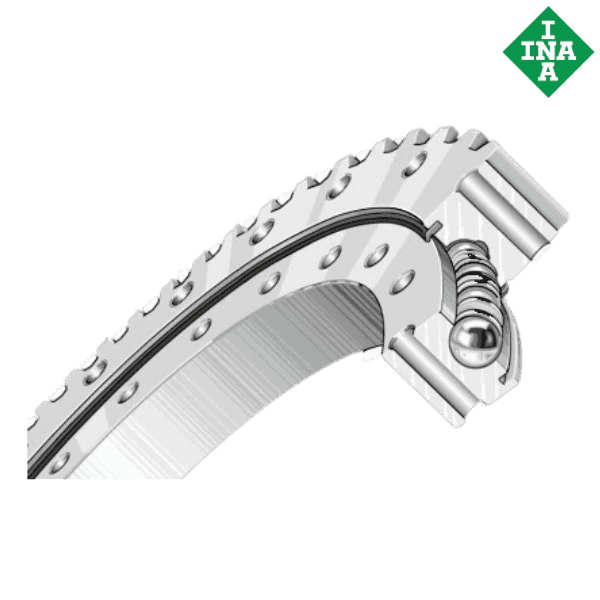

VA140188-V INA


Country Of Origin: EU
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - INA
Item Number - VA140188-V INA
Category - Slewing Ring Four Point Contact Bearing
Weight (kg) - 7.5

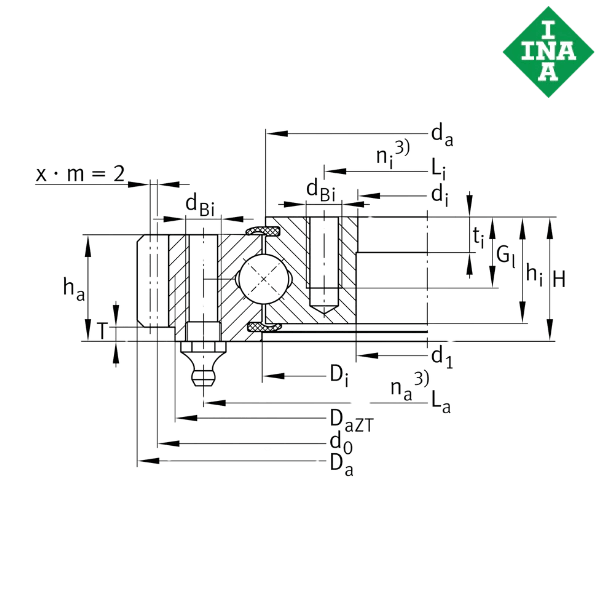

Outer Diameter (Da) mm - 259.36
Inner Diameter (di) mm - 135
Inner Diameter Outer Ring (Di) mm - 189
Outside Diameter Inner Ring (da) mm - 187
Height (H) mm - 35
Height of Individual Ring (h) mm - 30
Pitchcircle Diameter Fixing Holes Outer Ring (La) mm - 222
Pitchcircle Diameter Fixing Holes Inner Ring (Li) mm - 154
Number of Fixing Holes in Outer Ring (na) - 16
Number of Fixing Holes in Inner Ring (ni) - 16
Maximum Radial Load Fixing Screws (Friction Locking) (Fr) kN - 44.8
Pitch Circle Diameter Gearing (d0) mm - 248
Modul of Gearing (m) mm - 4
Number of Teeth (z) - 62
Width Gearing (b) mm - 26
Maximum Tooth Force Root Fatigue Strenght (at a Shock Factor of 1,2) (Fz norm) kN - 10.4
Maximum Tooth Force Against Tooth Fracture (at a Shock Factor of 1,35) (Fz max) kN - 15.3

** Images are for representation purposes only
