Description
Brand - OAV
Item Number - US150150 OAV
Category - U-Series Rail Guides
Imperial :
Flatness (inch) - 0.00002
Carriage Weight (lb) - 7 (Each Carriage)
Total Weight (lb) - 19
Z direction Load (lb) - 918
Y direction Load (lb) - 230
Metric :
Flatness (mm) - 0.0005
Local Straightness as per 25 mm travel (µm) - 0.25
Maximum Error as per 1000 mm travel (µm) - 2
Carriage Size (mm) - 150 x 150
Travel (mm) - 100
Guidebar Length (mm) - 250 /Custom
Assembly Height (mm) - 68
Z direction Load (N) - 4083
Y direction Load (N) - 1023
Air Flow (NLPM) - 38 (100 mm Travel)
Pitch (N-m) - 356
Roll (N-m) - 406
Yaw (N-m) - 210
Y Stiffness (N/μ) - 3801
Z Stiffness (N/μ) - 4106
Assembly Width (mm) - 280

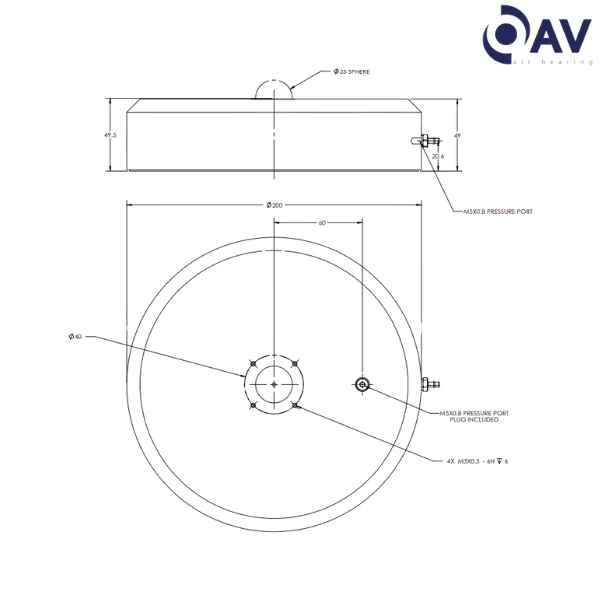

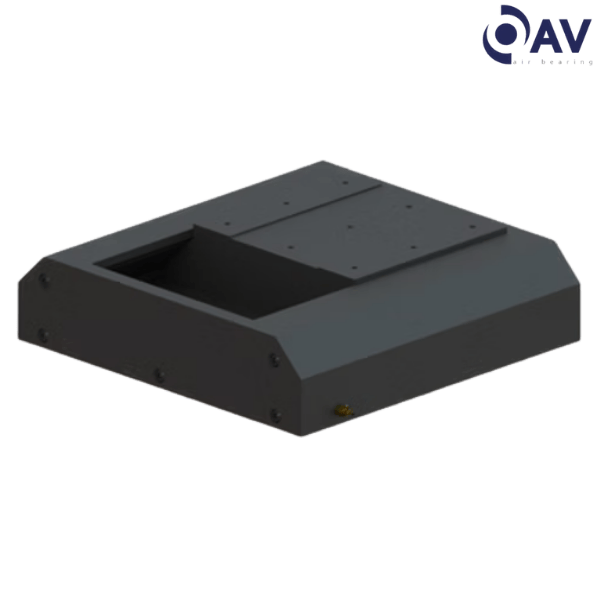

** Images are for representation purposes only
