Description
Brand - ZEN
Item Number - UCP220 ZEN
Category - Cast Iron Housings (UCP)
Bearing Number - UC220
Housing Number - P220

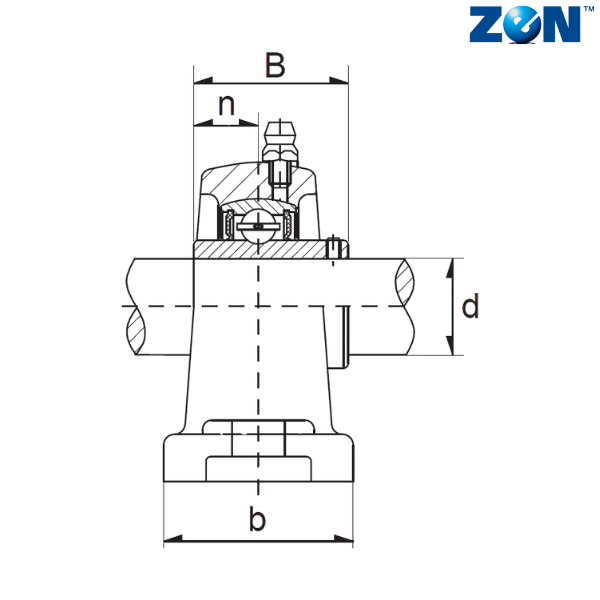

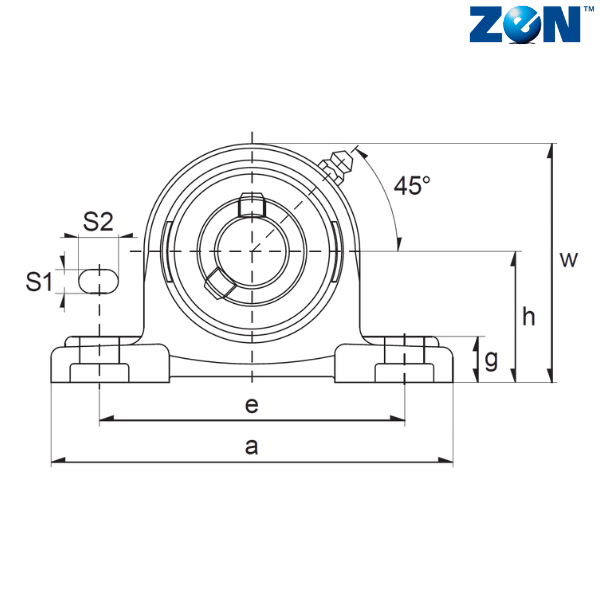

Imperial :
Inner Diameter (d) inch - 3.937
Base to Center Height (h) inch - 4.528
Overall Length (a) inch - 14.96062992
Bolt Center to Center Length (e) inch - 12.008
Width (B) inch - 3.74
S2 (inch) - 1.496
S1 (inch) - 1.181
Base Height (g) inch - 1.417
Overall Height (w) inch - 8.858
Bi (inch) - 2743.2
n (inch) - 1066.8
Weight (lbs) - 35.28
Metric :
Inner Diameter (d) mm - 100
Base to Center Height (h) mm - 115
Overall Length (a) mm - 380
Bolt Center to Center Length (e) mm - 305
Width (B) mm - 95
S2 (mm) - 38
S1 (mm) - 30
Base Height (g) mm - 36
Overall Height (w) mm - 225
Bi (mm) - 108
n (mm) - 42
Bolt - M24
Weight (kg) - 16
Complete Part Number = Bearing Number + Housing Number
-------------------------------------------------------------------------------------
UCP220 = UC220 + P220

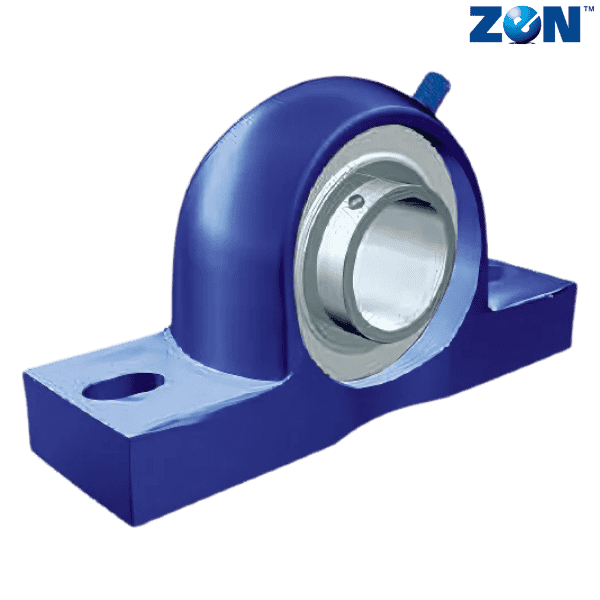

** Images are for representation purposes only
