Description
Brand - ZEN
Item Number - UCP209 ZEN
Category - Cast Iron Housings (UCP)
Bearing Number - UC209
Housing Number - P209

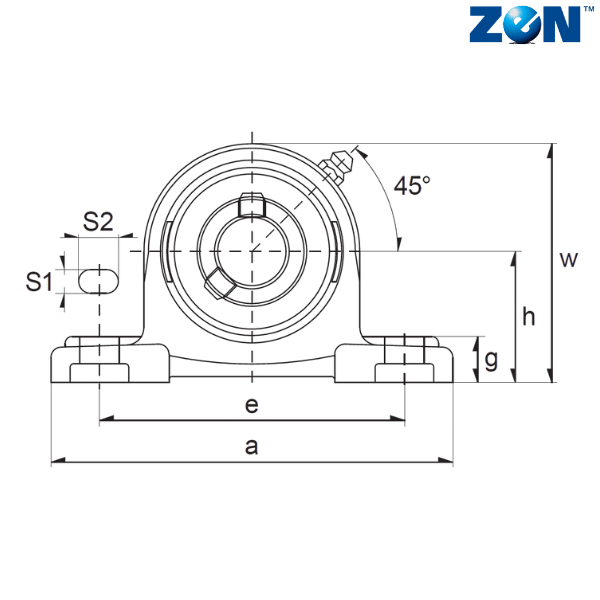

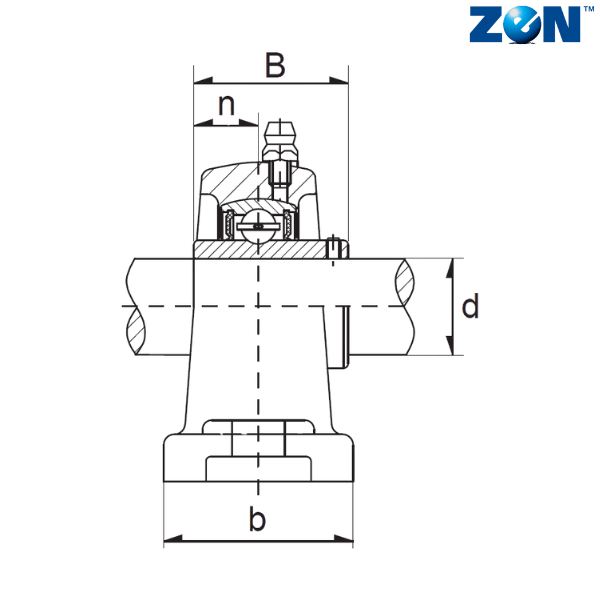

Imperial :
Inner Diameter (d) inch - 1.772
Base to Center Height (h) inch - 2.126
Overall Length (a) inch - 7.480314961
Bolt Center to Center Length (e) inch - 5.748
Width (B) inch - 2.126
S2 (inch) - 0.787
S1 (inch) - 0.669
Base Height (g) inch - 0.787
Overall Height (w) inch - 4.173
Bi (inch) - 1249.68
n (inch) - 482.6
t (inch) - 2.717
Weight (lbs) - 4.9392
Metric :
Inner Diameter (d) mm - 45
Base to Center Height (h) mm - 54
Overall Length (a) mm - 190
Bolt Center to Center Length (e) mm - 146
Width (B) mm - 54
S2 (mm) - 20
S1 (mm) - 17
Base Height (g) mm - 20
Overall Height (w) mm - 106
Bi (mm) - 49.2
n (mm) - 19
t (mm) - 69
Bolt - M14
Weight (kg) - 2.24
Complete Part Number = Bearing Number + Housing Number
-------------------------------------------------------------------------------------
UCP209 = UC209 + P209
** Images are for representation purposes only
