Description
Brand - ZEN
Item Number - UCP206-17 ZEN
Category - Cast Iron Housings (UCP)
Bearing Number - UC206-17
Housing Number - P206

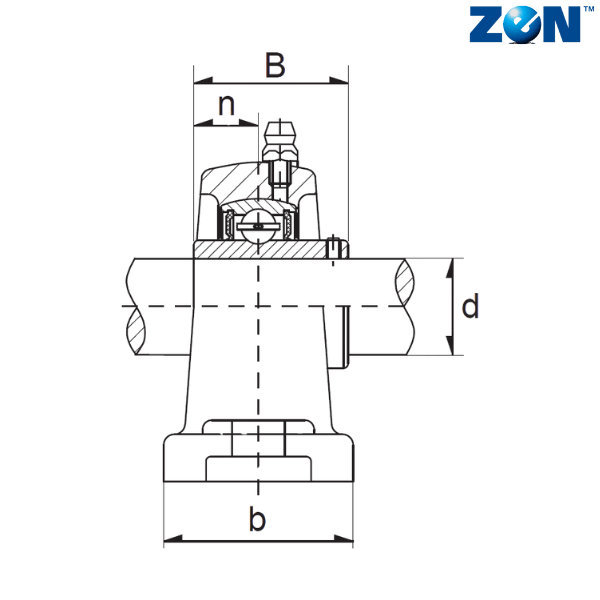

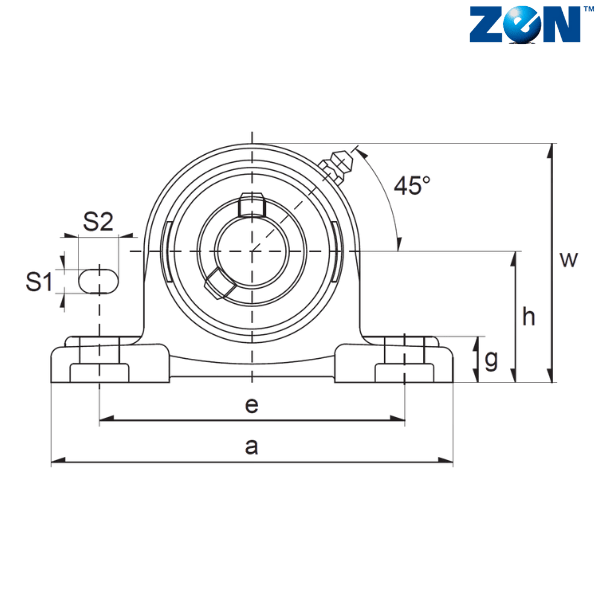

Imperial :
Inner Diameter (d) inch - 1.063
Base to Center Height (h) inch - 1.688
Overall Length (a) inch - 6.5
Bolt Center to Center Length (e) inch - 4.75
Width (B) inch - 1.875
S2 (inch) - 0.781
S1 (inch) - 0.656
Base Height (g) inch - 0.656
Overall Height (w) inch - 3.313
Bi (inch) - 1.5
n (inch) - 0.626
t (inch) - 2.078
Bolt (inch) - 0.5
Weight (lbs) - 2.82
Metric :
Inner Diameter (d) mm - 26.9875
Base to Center Height (h) mm - 42.8625
Overall Length (a) mm - 165.1
Bolt Center to Center Length (e) mm - 120.65
Width (B) mm - 47.625
S2 (mm) - 19.84375
S1 (mm) - 16.66875
Base Height (g) mm - 16.66875
Overall Height (w) mm - 84.1375
Bi (mm) - 0.05905511811
n (mm) - 0.02464566929
t (mm) - 52.784375
Weight (kg) - 1.278911565
Complete Part Number = Bearing Number + Housing Number
-------------------------------------------------------------------------------------
UCP206-17 = UC206-17 + P206

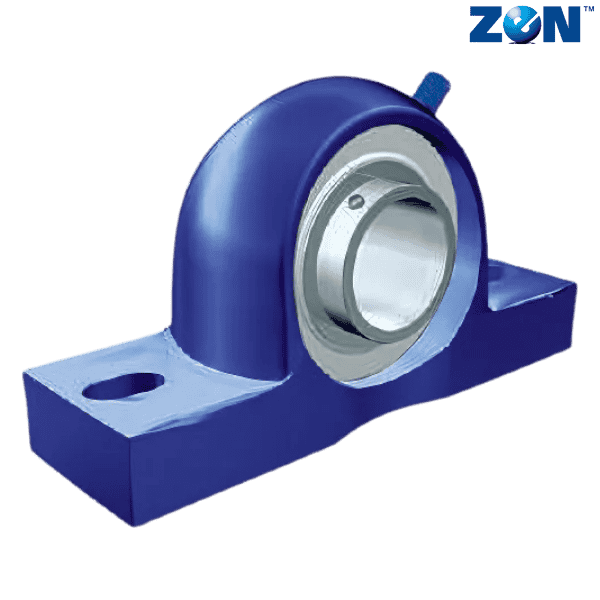

** Images are for representation purposes only
