UCFL216 ZEN

Brand - ZEN
Item Number - UCFL216 ZEN
Category - Cast Iron Housings (UCFL)
Bearing Number - UC216
Housing Number - FL216

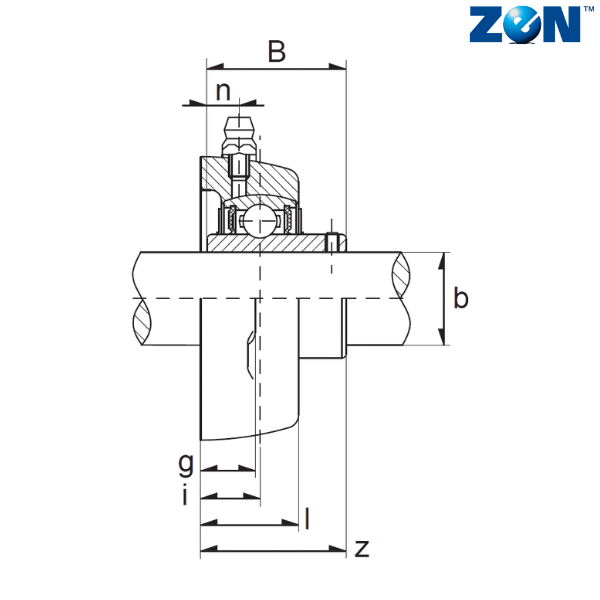

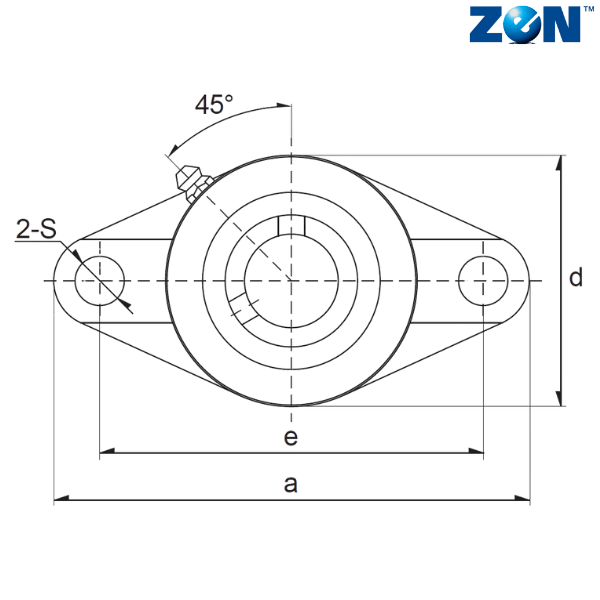

Imperial :
Inner Diameter (d) inch - 3.1496062992126
Overall Length (a) inch - 11.4173228346457
Bolt Center to Center Length (e) inch - 9.17322834645669
i (inch) - 1.33858267716535
g (inch) - 0.866141732283465
b (inch) - 7.08661417322835
l (inch) - 2.28346456692913
s (inch) - 0.984251968503937
t (inch) - 3.48425196850394
z (inch) - 3.27952755905512
Bi (inch) - 3.25196850393701
n (inch) - 0.393696850393701
Weight (lbs) - 16.317

Metric :
Inner Diameter (d) mm - 80
Overall Length (a) mm - 290
Bolt Center to Center Length (e) mm - 233
i (mm) - 34
g (mm) - 22
b (mm) - 180
l (mm) - 58
s (mm) - 25
t (mm) - 88.5
z (mm) - 83.3
Bi (mm) - 82.6
n (mm) - 9.9999
Bolt - M22
Weight (kg) - 7.4

Complete Part Number = Bearing Number + Housing Number
-------------------------------------------------------------------------------------
UCFL216 = UC216 + FL216

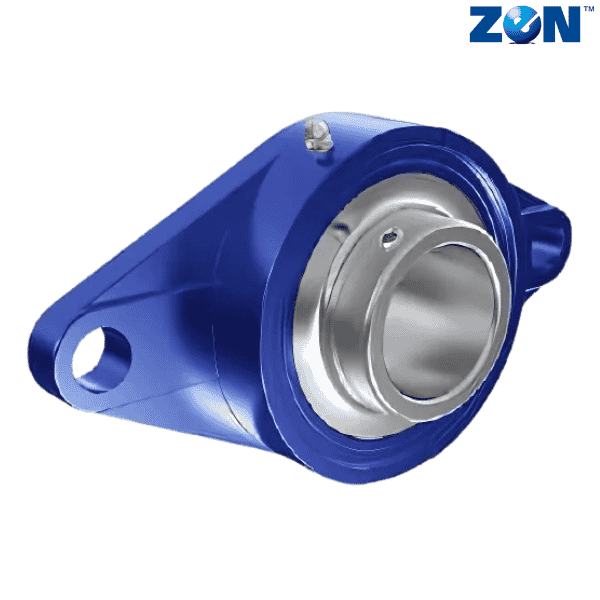

** Images are for representation purposes only
