Description
Brand - ZEN
Item Number - UCFL211-32 ZEN
Category - Cast Iron Housings (UCFL)
Bearing Number - UC211-32
Housing Number - FL211

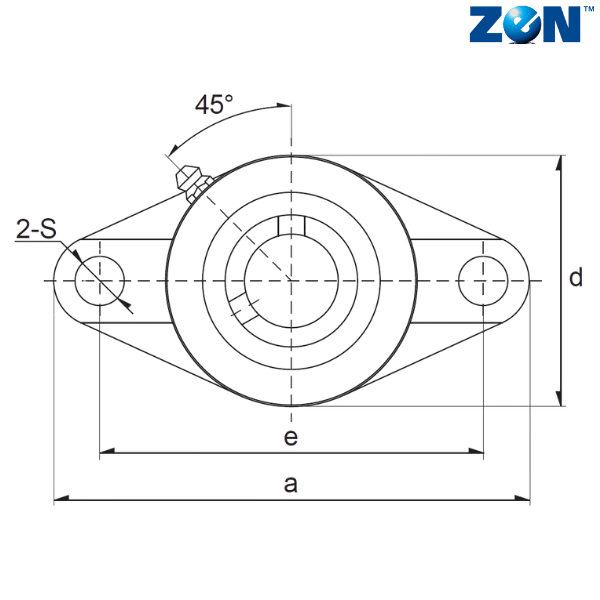

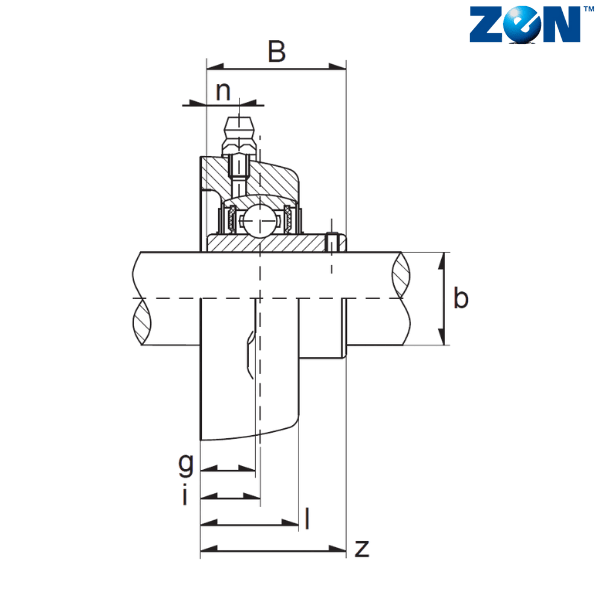

Imperial :
Inner Diameter (d) inch - 2
Overall Length (a) inch - 8.8125
Bolt Center to Center Length (e) inch - 7.25
i (inch) - 0.984375
g (inch) - 0.71875
b (inch) - 5.125
l (inch) - 1.6875
s (inch) - 0.75
t (inch) - 2.484375
z (inch) - 2.3125
Bi (inch) - 2.189
n (inch) - 0.874
Bolt (inch) - 0.625
Weight (lbs) - 6.4
Metric :
Inner Diameter (d) mm - 50.8
Overall Length (a) mm - 223.8375
Bolt Center to Center Length (e) mm - 184.15
i (mm) - 25.003125
g (mm) - 18.25625
b (mm) - 130.175
l (mm) - 42.8625
s (mm) - 19.05
t (mm) - 63.103125
z (mm) - 58.7375
Bi (mm) - 55.6006
n (mm) - 22.1996
Weight (kg) - 2.90249433106576
Complete Part Number = Bearing Number + Housing Number
-------------------------------------------------------------------------------------
UCFL211-32 = UC211-32 + FL211
** Images are for representation purposes only
