Description
Brand - ZEN
Item Number - UCFL209 ZEN
Category - Cast Iron Housings (UCFL)
Bearing Number - UC209
Housing Number - FL209

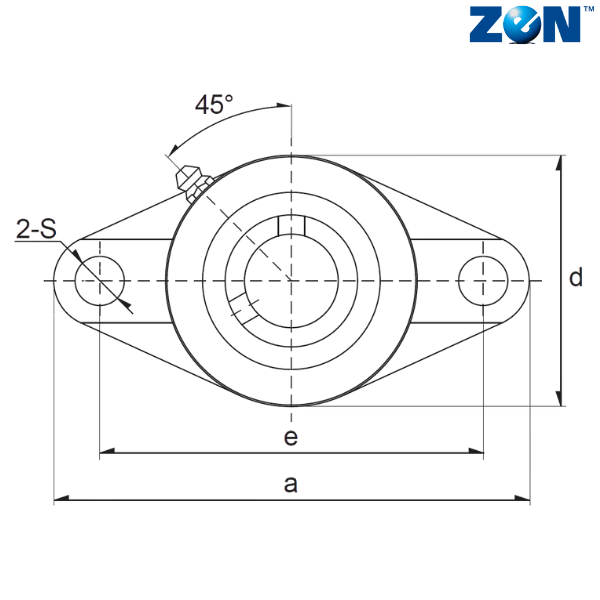

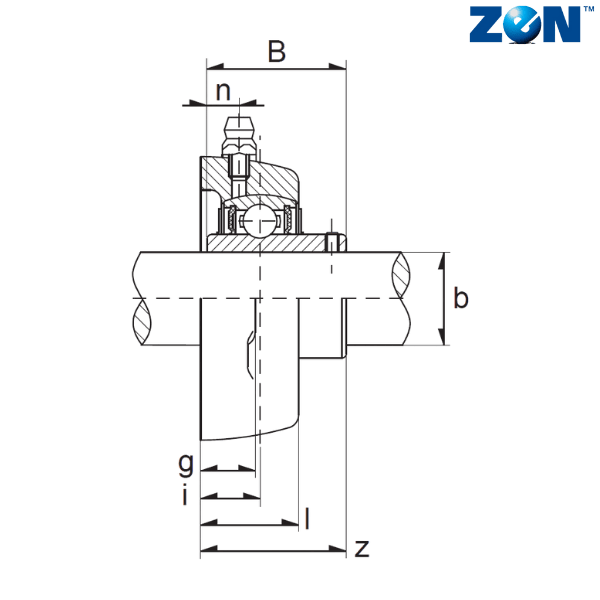

Imperial :
Inner Diameter (d) inch - 1.77165354330709
Overall Length (a) inch - 7.40157480314961
Bolt Center to Center Length (e) inch - 5.82677165354331
i (inch) - 0.866141732283465
g (inch) - 0.590551181102362
b (inch) - 4.25196850393701
l (inch) - 1.49606299212598
s (inch) - 0.748031496062992
t (inch) - 2.2244094488189
z (inch) - 2.05511811023622
Bi (inch) - 1.93700787401575
n (inch) - 0.393696850393701
Weight (lbs) - 4.1895
Metric :
Inner Diameter (d) mm - 45
Overall Length (a) mm - 188
Bolt Center to Center Length (e) mm - 148
i (mm) - 22
g (mm) - 15
b (mm) - 108
l (mm) - 38
s (mm) - 19
t (mm) - 56.5
z (mm) - 52.2
Bi (mm) - 49.2
n (mm) - 9.9999
Bolt - M16
Weight (kg) - 1.9
Complete Part Number = Bearing Number + Housing Number
-------------------------------------------------------------------------------------
UCFL209 = UC209 + FL209

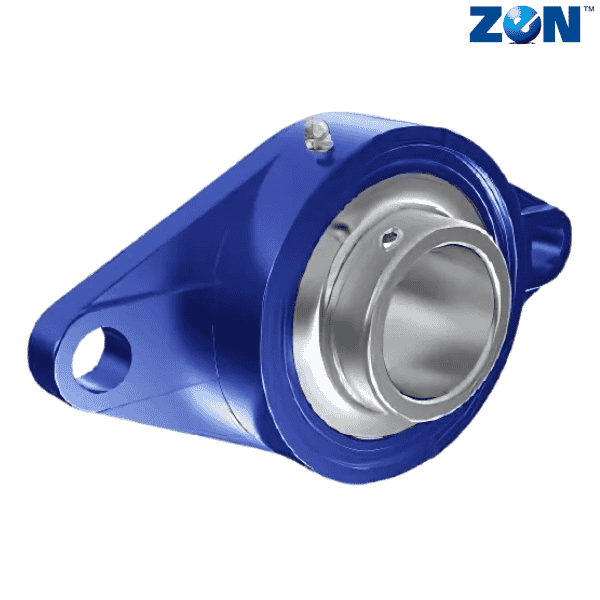

** Images are for representation purposes only
