Description
Brand - ZEN
Item Number - UCF214-43 ZEN
Category - Cast Iron Housings (UCF)
Bearing Number - UC214-43
Housing Number - F214

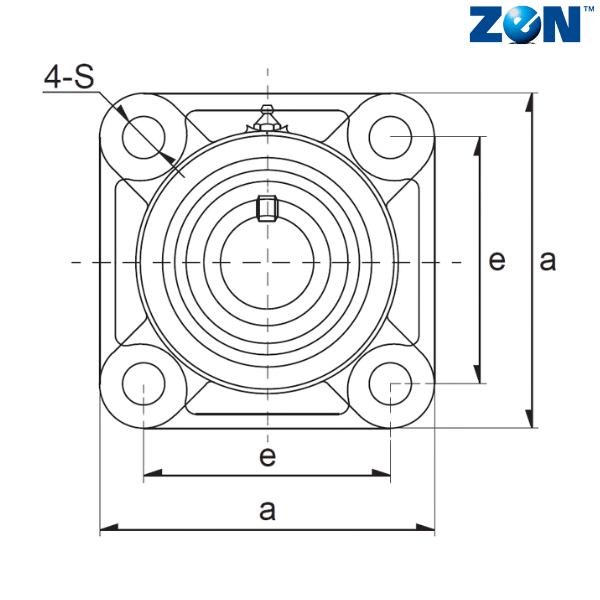

Imperial :
Inner Diameter (d) inch - 2.69
Overall Length (a) inch - 7.59
Bolt Center to Center Length (e) inch - 5.98
i (inch) - 1.219
g (inch) - 0.859375
l (inch) - 2.125
s (inch) - 0.75
t (inch) - 3.203125
z (inch) - 2.96875
Bi (inch) - 2.937
n (inch) - 1.189
Bolt (inch) - 0.625
Weight (lbs) - 13
Metric :
Inner Diameter (d) mm - 68.2625
Overall Length (a) mm - 192.88
Bolt Center to Center Length (e) mm - 152
i (mm) - 30.95625
g (mm) - 21.828125
l (mm) - 53.975
s (mm) - 19.05
t (mm) - 81.359375
z (mm) - 75.40625
Bi (mm) - 74.5998
n (mm) - 30.2006
Weight (kg) - 5.89569160997732
Complete Part Number = Bearing Number + Housing Number
-------------------------------------------------------------------------------------
UCF214-43 = UC214-43 + F214

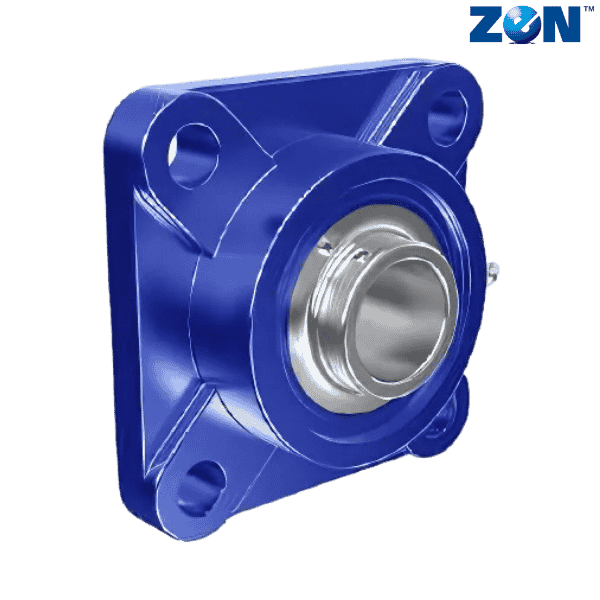

** Images are for representation purposes only
