UCF213-41 ZEN

Brand - ZEN
Item Number - UCF213-41 ZEN
Category - Cast Iron Housings (UCF)
Bearing Number - UC213-41
Housing Number - F213

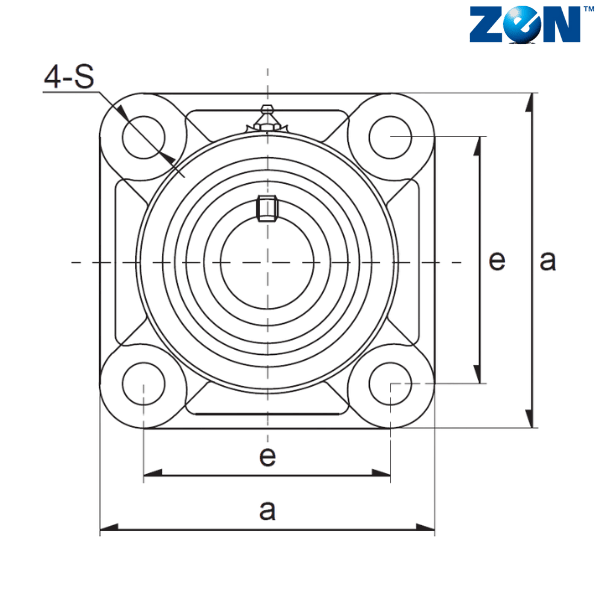

Imperial :
Inner Diameter (d) inch - 2.56
Overall Length (a) inch - 7.43
Bolt Center to Center Length (e) inch - 5.86
i (inch) - 1.188
g (inch) - 0.859375
l (inch) - 1.96875
s (inch) - 0.75
t (inch) - 2.9375
z (inch) - 2.75
Bi (inch) - 2.563
n (inch) - 1
Bolt (inch) - 0.625
Weight (lbs) - 11.7

Metric :
Inner Diameter (d) mm - 65.0875
Overall Length (a) mm - 188.62
Bolt Center to Center Length (e) mm - 148.83
i (mm) - 30.1625
g (mm) - 21.828125
l (mm) - 50.00625
s (mm) - 19.05
t (mm) - 74.6125
z (mm) - 69.85
Bi (mm) - 65.1002
n (mm) - 25.4
Weight (kg) - 5.30612244897959

Complete Part Number = Bearing Number + Housing Number
-------------------------------------------------------------------------------------
UCF213-41 = UC213-41 + F213

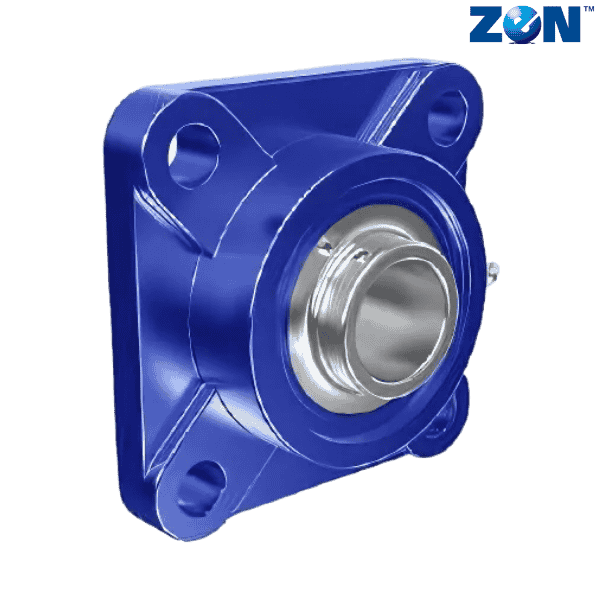

** Images are for representation purposes only
