Description
Brand - ZEN
Item Number - UCF212 ZEN
Category - Cast Iron Housings (UCF)
Bearing Number - UC212
Housing Number - F212
Imperial :
Inner Diameter (d) inch - 2.36
Overall Length (a) inch - 6.89
Bolt Center to Center Length (e) inch - 5.63
i (inch) - 1.142
g (inch) - 0.78740157480315
l (inch) - 1.88976377952756
s (inch) - 0.748031496062992
t (inch) - 2.89370078740158
z (inch) - 2.70472440944882
Bi (inch) - 2.56299212598425
n (inch) - 1
Weight (lbs) - 9.19485
Metric :
Inner Diameter (d) mm - 60
Overall Length (a) mm - 175
Bolt Center to Center Length (e) mm - 143
i (mm) - 29
g (mm) - 20
l (mm) - 48
s (mm) - 19
t (mm) - 73.5
z (mm) - 68.7
Bi (mm) - 65.1
n (mm) - 25.4
Bolt - M16
Weight (kg) - 4.17
Complete Part Number = Bearing Number + Housing Number
-------------------------------------------------------------------------------------
UCF212 = UC212 + F212

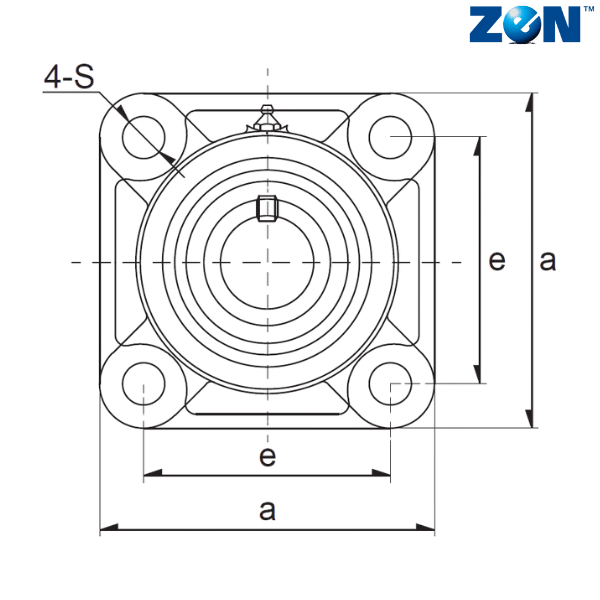

** Images are for representation purposes only
