Description
Brand - ZEN
Item Number - UCF212-36 ZEN
Category - Cast Iron Housings (UCF)
Bearing Number - UC212-36
Housing Number - F212

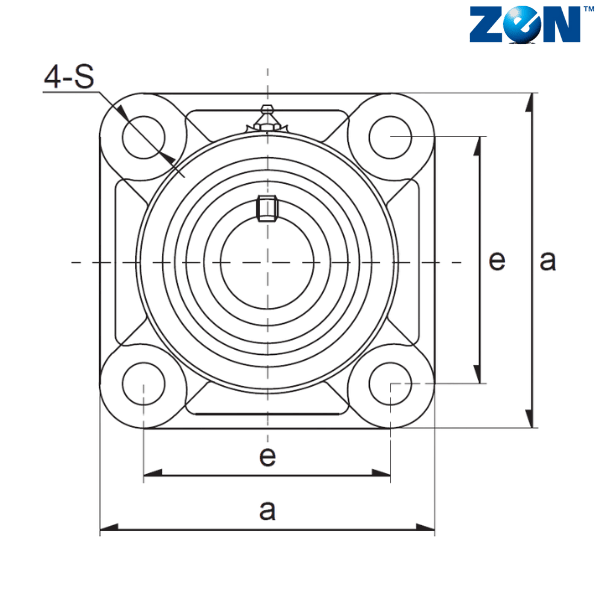

Imperial :
Inner Diameter (d) inch - 2.25
Overall Length (a) inch - 6.89
Bolt Center to Center Length (e) inch - 5.63
i (inch) - 1.141
g (inch) - 0.78125
l (inch) - 1.875
s (inch) - 0.75
t (inch) - 2.890625
z (inch) - 2.71875
Bi (inch) - 2.563
n (inch) - 1
Bolt (inch) - 0.625
Weight (lbs) - 9.2
Metric :
Inner Diameter (d) mm - 57.15
Overall Length (a) mm - 175.02
Bolt Center to Center Length (e) mm - 142.88
i (mm) - 28.971875
g (mm) - 19.84375
l (mm) - 47.625
s (mm) - 19.05
t (mm) - 73.421875
z (mm) - 69.05625
Bi (mm) - 65.1002
n (mm) - 25.4
Weight (kg) - 4.17233560090703
Complete Part Number = Bearing Number + Housing Number
-------------------------------------------------------------------------------------
UCF212-36 = UC212-36 + F212
** Images are for representation purposes only
