Description
Brand - ZEN
Item Number - UCF211-35 ZEN
Category - Cast Iron Housings (UCF)
Bearing Number - UC211-35
Housing Number - F211

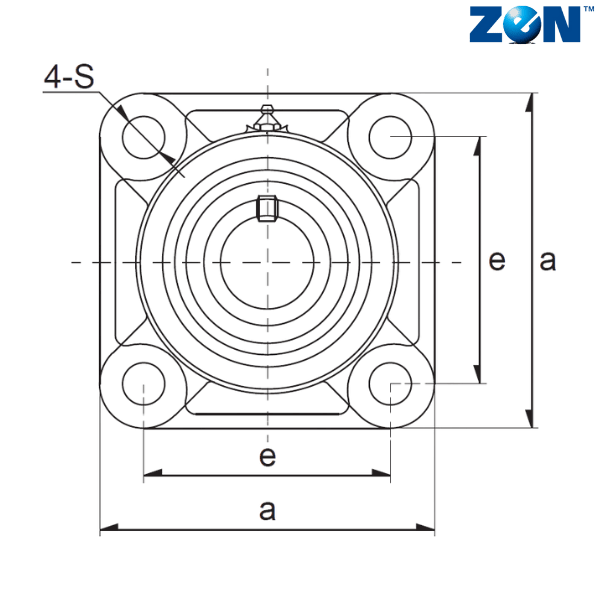

Imperial :
Inner Diameter (d) inch - 2.19
Overall Length (a) inch - 6.38
Bolt Center to Center Length (e) inch - 5.13
i (inch) - 0.984
g (inch) - 0.78125
l (inch) - 1.6875
s (inch) - 0.75
t (inch) - 2.484375
z (inch) - 2.3125
Bi (inch) - 2.189
n (inch) - 0.874
Bolt (inch) - 0.625
Weight (lbs) - 7.5
Metric :
Inner Diameter (d) mm - 55.5625
Overall Length (a) mm - 161.93
Bolt Center to Center Length (e) mm - 130.18
i (mm) - 25.003125
g (mm) - 19.84375
l (mm) - 42.8625
s (mm) - 19.05
t (mm) - 63.103125
z (mm) - 58.7375
Bi (mm) - 55.6006
n (mm) - 22.1996
Weight (kg) - 3.40136054421769
Complete Part Number = Bearing Number + Housing Number
-------------------------------------------------------------------------------------
UCF211-35 = UC211-35 + F211
** Images are for representation purposes only
