Description
Brand - ZEN
Item Number - UCF210-31 ZEN
Category - Cast Iron Housings (UCF)
Bearing Number - UC210-31
Housing Number - F210
Imperial :
Inner Diameter (d) inch - 1.94
Overall Length (a) inch - 5.63
Bolt Center to Center Length (e) inch - 4.38
i (inch) - 0.859
g (inch) - 0.71875
l (inch) - 1.5625
s (inch) - 0.625
t (inch) - 2.34375
z (inch) - 2.15625
Bi (inch) - 2.0315
n (inch) - 0.748
Bolt (inch) - 0.5
Weight (lbs) - 5.4
Metric :
Inner Diameter (d) mm - 49.2125
Overall Length (a) mm - 142.88
Bolt Center to Center Length (e) mm - 111.13
i (mm) - 21.828125
g (mm) - 18.25625
l (mm) - 39.6875
s (mm) - 15.875
t (mm) - 59.53125
z (mm) - 54.76875
Bi (mm) - 51.6001
n (mm) - 18.9992
Weight (kg) - 2.44897959183673
Complete Part Number = Bearing Number + Housing Number
-------------------------------------------------------------------------------------
UCF210-31 = UC210-31 + F210

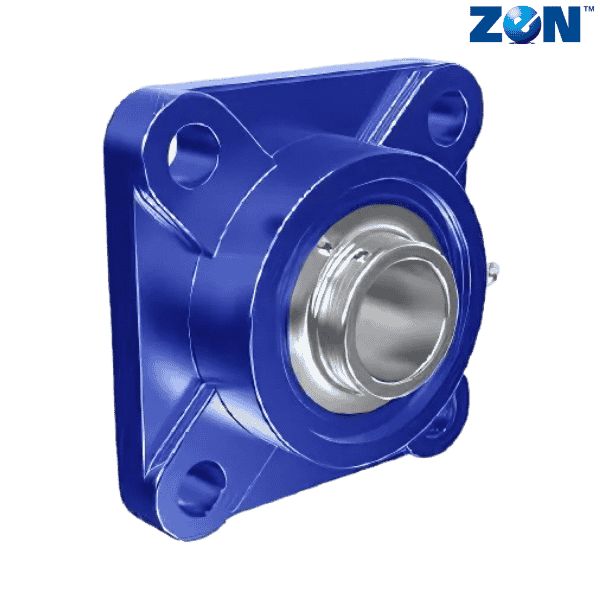

** Images are for representation purposes only
