UC 215 BHTS ZZ GR CG 350° BECO


Country Of Origin: ITALY
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - BECO
Item Number - UC 215 BHTS ZZ GR CG 350° BECO
Category - Insert Bearing for Extreme Temperature
Bore Diameter (B) mm - 75
Outer Diameter (D) mm - 130
Dimension (A) mm - 29 ± 5
Dimension (A1) mm - 33.3
Dimension (A2) mm - 44.5
N - M12x1.50
Weight (kg) - 2.2
Limiting Speed (RPM) - 40
Static Load at 350°C (kN) - 33.9
Static Load at 20°C (kN) - 49.2

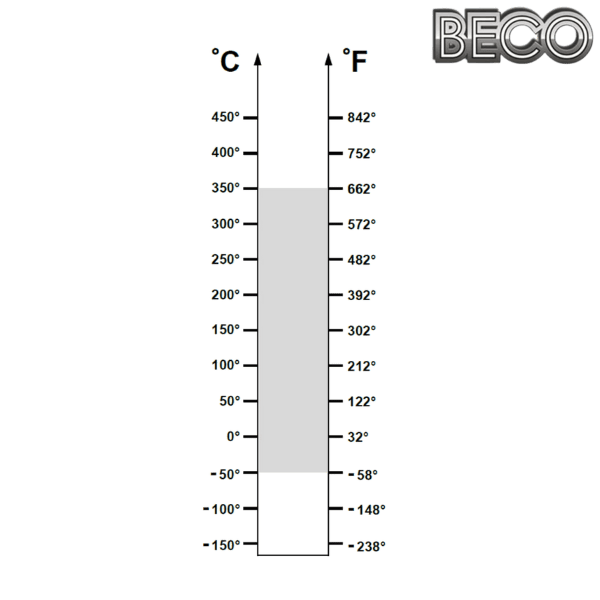

Operating Range - ‒50° / 350°C
Economic Operating Range - 250° / 350°C

---------------------------------------------------------
Bearing + Housing = Bearing Unit
---------------------------------------------------------
UC 215 BHTS ZZ GR CG 350° + F 215 SS = UCF 215 BHTS ZZ GR CG 350°
UC 215 BHTS ZZ GR CG 350° + P 215 SS = UCP 215 BHTS ZZ GR CG 350°

NOTE:
- Operating Range is the correct technical range in which can be used the bearing with good operating result
- Economic Operating Range is the range of temperature in which you can find, according to our study experience and know-how, the better relation price-quality-lifetime.

** Images are for representation purposes only
