UC 210 BSS 2RS NSF H1 BECO

Brand - BECO
Item Number - UC 210 BSS 2RS NSF H1 BECO
Category - Insert Bearing in Stainless Steel
Bore Diameter (B) mm - 50
Outer Diameter (D) mm - 90
Dimension (A) mm - 22 ± 2
Dimension (A1) mm - 19.0
Dimension (A2) mm - 32.6
N - M10x1.25
Weight (kg) - 0.733
Limiting Speed (RPM) - 600
Static Load at 100°C (kN) - 20.8
Static Load at 20°C (kN) - 20.8

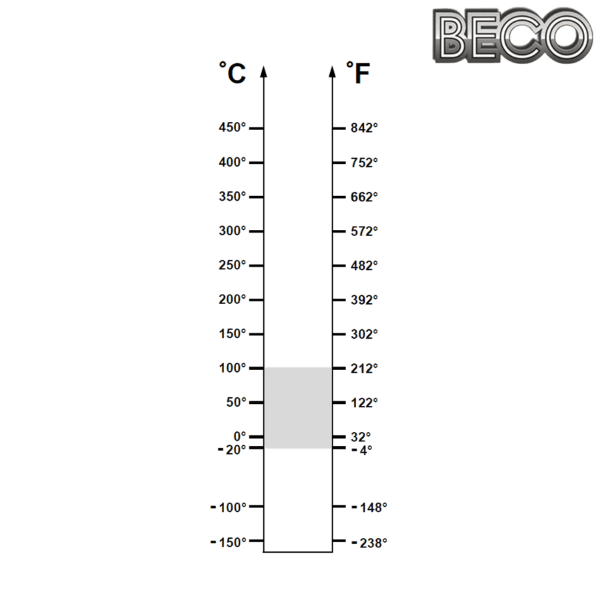

Operating Range - ‒20° / 100°C
Economic Operating Range - ‒20° / 100°C

--------------------------------------------------------------------------------------------------------------
Bearing + Housing = Bearing Unit
--------------------------------------------------------------------------------------------------------------
UC 210 BSS 2RS NSF H1 + PA 210 SS = UCPA 210 BSS 2RS NSF H1
UC 210 BSS 2RS NSF H1 + F 210 SS = UCF 210 BSS 2RS NSF H1
UC 210 BSS 2RS NSF H1 + FL 210 SS = UCFL 210 BSS 2RS NSF H1
UC 210 BSS 2RS NSF H1 + P 210 SS = UCP 210 BSS 2RS NSF H1
UC 210 BSS 2RS NSF H1 + PLASTIC HOUSING F PL 210 = UCF PL 210 BSS 2RS NSF H1
UC 210 BSS 2RS NSF H1 + PLASTIC HOUSING FL PL 210 = UCFL PL 210 BSS 2RS NSF H1
UC 210 BSS 2RS NSF H1 + PLASTIC HOUSING P PL 210 = UCP PL 210 BSS 2RS NSF H1

NOTE:
- Operating Range is the correct technical range in which can be used the bearing with good operating result
- Economic Operating Range is the range of temperature in which you can find, according to our study experience and know-how, the better relation price-quality-lifetime.

** Images are for representation purposes only
