UC 210 BHTS ZZ GR CG 350° BECO


Country Of Origin: ITALY
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - BECO
Item Number - UC 210 BHTS ZZ GR CG 350° BECO
Category - Insert Bearing for Extreme Temperature
Bore Diameter (B) mm - 50
Outer Diameter (D) mm - 90
Dimension (A) mm - 22 ± 2
Dimension (A1) mm - 19.0
Dimension (A2) mm - 32.6
N - M10x1.25
Weight (kg) - 0.9
Limiting Speed (RPM) - 40
Static Load at 350°C (kN) - 15.9
Static Load at 20°C (kN) - 23.1

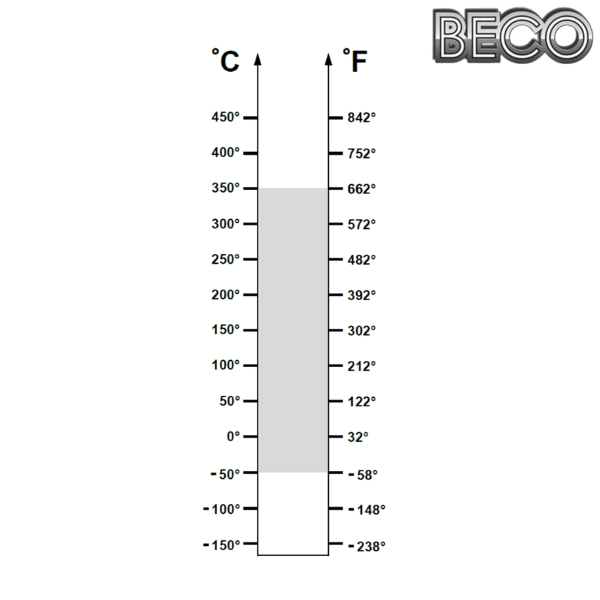

Operating Range - ‒50° / 350°C
Economic Operating Range - 250° / 350°C

---------------------------------------------------------
Bearing + Housing = Bearing Unit
---------------------------------------------------------
UC 210 BHTS ZZ GR CG 350° + PA 210 SS = UCPA 210 BHTS ZZ GR CG 350°
UC 210 BHTS ZZ GR CG 350° + F 210 SS = UCF 210 BHTS ZZ GR CG 350°
UC 210 BHTS ZZ GR CG 350° + FL 210 SS = UCFL 210 BHTS ZZ GR CG 350°
UC 210 BHTS ZZ GR CG 350° + P 210 SS = UCP 210 BHTS ZZ GR CG 350°

NOTE:
- Operating Range is the correct technical range in which can be used the bearing with good operating result
- Economic Operating Range is the range of temperature in which you can find, according to our study experience and know-how, the better relation price-quality-lifetime.

** Images are for representation purposes only
