Description
Brand - BECO
Item Number - UC 210 BHTS ZZ C4 200° BECO
Category - Insert Bearing for High Temperature
Bore Diameter (B) mm - 50
Outer Diameter (D) mm - 90
Dimension (A) mm - 22 ± 2
Dimension (A1) mm - 19.0
Dimension (A2) mm - 32.6
N - M10x1.25
Weight (kg) - 0.9
Limiting Speed (RPM) - 600
Static Load at 200°C (kN) - 21.00
Static Load at 20°C (kN) - 23.1

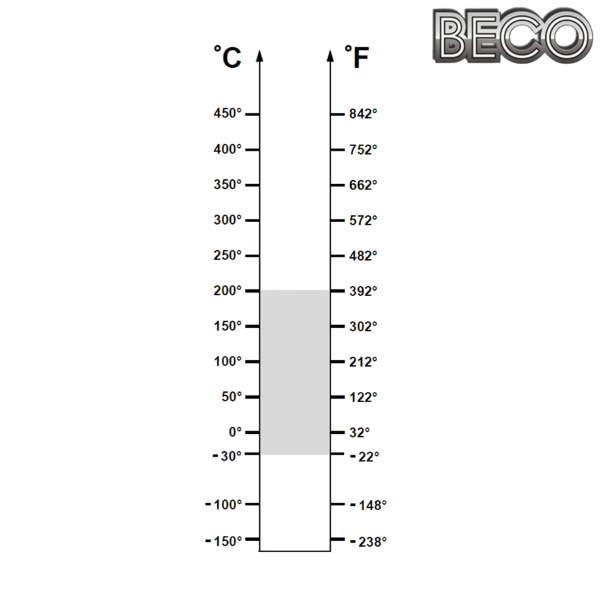

Operating Range - ‒30° / 200°C
Economic Operating Range - 120° / 200°C
---------------------------------------------------------
Bearing + Housing = Bearing Unit
---------------------------------------------------------
UC 210 BHTS ZZ C4 200° + PA 210 SS = UCPA 210 BHTS ZZ C4 200°
UC 210 BHTS ZZ C4 200° + F 210 SS = UCF 210 BHTS ZZ C4 200°
UC 210 BHTS ZZ C4 200° + FL 210 SS = UCFL 210 BHTS ZZ C4 200°
UC 210 BHTS ZZ C4 200° + P 210 SS = UCP 210 BHTS ZZ C4 200°
UC 210 BHTS ZZ C4 200° + T 210 SS = UCT 210 BHTS ZZ C4 200°
NOTE:
- Operating Range is the correct technical range in which can be used the bearing with good operating result
- Economic Operating Range is the range of temperature in which you can find, according to our study experience and know-how, the better relation price-quality-lifetime.
** Images are for representation purposes only
