UC 207 BHTS 2RS VT 250°-280° BECO


Country Of Origin: ITALY
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - BECO
Item Number - UC 207 BHTS 2RS VT 250°-280° BECO
Category - Insert Bearing for Extreme Temperature
Bore Diameter (B) mm - 35
Outer Diameter (D) mm - 72
Dimension (A) mm - 18 ± 2
Dimension (A1) mm - 17.5
Dimension (A2) mm - 25.4
N - M8x1.00
Weight (kg) - 0.5
Limiting Speed (RPM) - 608
Static Load at 280°C (kN) - 10.7
Static Load at 20°C (kN) - 15.1

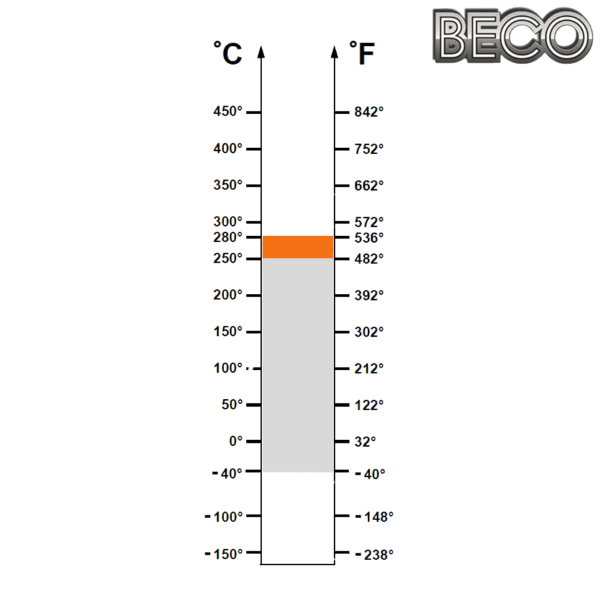

Operating Range - ‒40° / 250°C
Economic Operating Range - 180° / 250°C
Short-Time Operating Range - 250° / 280°C

---------------------------------------------------------
Bearing + Housing = Bearing Unit
---------------------------------------------------------
UC 207 BHTS 2RS VT 250°-280° + PA 207 SS = UCPA 207 BHTS 2RS VT 250°-280°
UC 207 BHTS 2RS VT 250°-280° + F 207 SS = UCF 207 BHTS 2RS VT 250°-280°
UC 207 BHTS 2RS VT 250°-280° + FL 207 SS = UCFL 207 BHTS 2RS VT 250°-280°
UC 207 BHTS 2RS VT 250°-280° + P 207 SS = UCP 207 BHTS 2RS VT 250°-280°
UC 207 BHTS 2RS VT 250°-280° + T 207 SS = UCT 207 BHTS 2RS VT 250°-280°

NOTE:
- Operating Range is the correct technical range in which can be used the bearing with good operating result
- Economic Operating Range is the range of temperature in which you can find, according to our study experience and know-how, the better relation price-quality-lifetime.

** Images are for representation purposes only
