Description
Brand - ZEN
Item Number - UC 206 ZEN
Category - Solid Ceramic Insert Bearing
Inner Diameter (d) mm - 30.00
Outer Diameter (D) mm - 62.00
Minimum Width (B1) mm - 19.00
Maximum Width (B2) mm - 38.10
Dynamic Load Rating (C) N - 15200
Static Load Rating (C) N - 10200

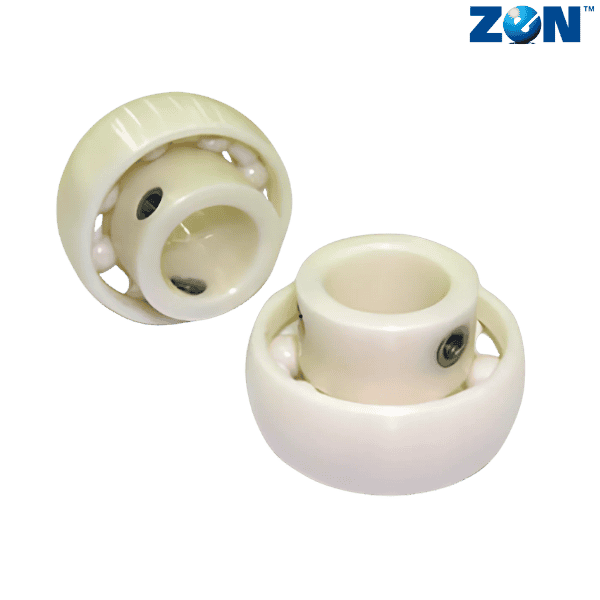

** Images are for representation purposes only
