Description
Brand - BECO
Item Number - UC 206 BHTS ZZ 280° BECO
Category - Insert Bearing for Extreme Temperature
Bore Diameter (B) mm - 30
Outer Diameter (D) mm - 62
Dimension (A) mm - 17 ± 2
Dimension (A1) mm - 15.9
Dimension (A2) mm - 22.2
N - M6x0.75
Weight (kg) - 0.35
Limiting Speed (RPM) - 704
Static Load at 280°C (kN) - 8.00
Static Load at 20°C (kN) - 11.2

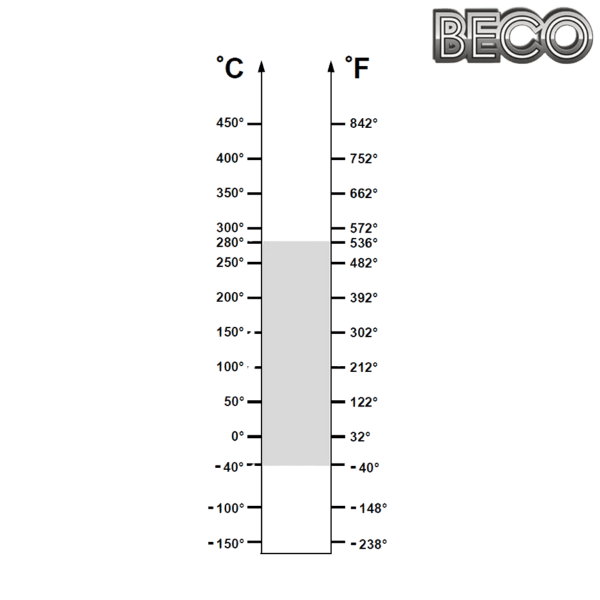

Operating Range - ‒40° / 280°C
Economic Operating Range - 200° / 280°C
---------------------------------------------------------
Bearing + Housing = Bearing Unit
---------------------------------------------------------
UC 206 BHTS ZZ 280° + PA 206 SS = UCPA 206 BHTS ZZ 280°
UC 206 BHTS ZZ 280° + F 206 SS = UCF 206 BHTS ZZ 280°
UC 206 BHTS ZZ 280° + FL 206 SS = UCFL 206 BHTS ZZ 280°
UC 206 BHTS ZZ 280° + P 206 SS = UCP 206 BHTS ZZ 280°
UC 206 BHTS ZZ 280° + T 206 SS = UCT 206 BHTS ZZ 280°
NOTE:
- Operating Range is the correct technical range in which can be used the bearing with good operating result
- Economic Operating Range is the range of temperature in which you can find, according to our study experience and know-how, the better relation price-quality-lifetime.
** Images are for representation purposes only
