UC 205 BSS 2RS NSF H1 BECO

Brand - BECO
Item Number - UC 205 BSS 2RS NSF H1 BECO
Category - Insert Bearing in Stainless Steel
Bore Diameter (B) mm - 25
Outer Diameter (D) mm - 52
Dimension (A) mm - 16 ± 1
Dimension (A1) mm - 14.3
Dimension (A2) mm - 19.8
N - M6x0.75
Weight (kg) - 0.175
Limiting Speed (RPM) - 1120
Static Load at 100°C (kN) - 7.00
Static Load at 20°C (kN) - 7.00

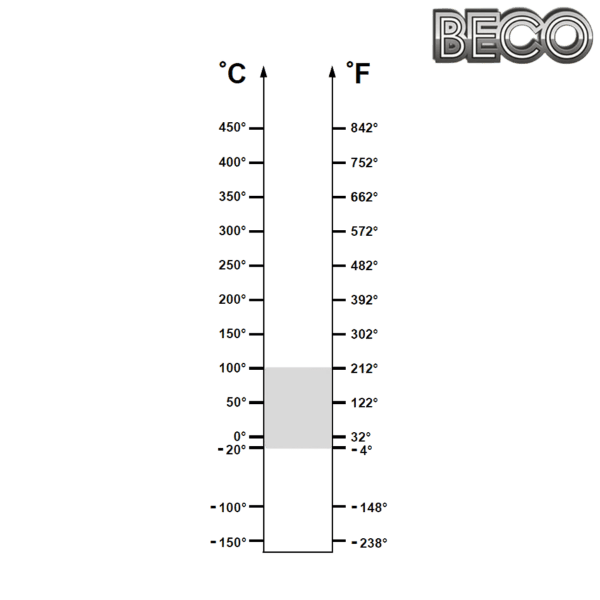

Operating Range - ‒20° / 100°C
Economic Operating Range - ‒20° / 100°C

--------------------------------------------------------------------------------------------------------------
Bearing + Housing = Bearing Unit
--------------------------------------------------------------------------------------------------------------
UC 205 BSS 2RS NSF H1 + PA 205 SS = UCPA 205 BSS 2RS NSF H1
UC 205 BSS 2RS NSF H1 + F 205 SS = UCF 205 BSS 2RS NSF H1
UC 205 BSS 2RS NSF H1 + FL 205 SS = UCFL 205 BSS 2RS NSF H1
UC 205 BSS 2RS NSF H1 + P 205 SS = UCP 205 BSS 2RS NSF H1
UC 205 BSS 2RS NSF H1 + PLASTIC HOUSING F PL 205 = UCF PL 205 BSS 2RS NSF H1
UC 205 BSS 2RS NSF H1 + PLASTIC HOUSING FL PL 205 = UCFL PL 205 BSS 2RS NSF H1
UC 205 BSS 2RS NSF H1 + PLASTIC HOUSING P PL 205 = UCP PL 205 BSS 2RS NSF H1

NOTE:
- Operating Range is the correct technical range in which can be used the bearing with good operating result
- Economic Operating Range is the range of temperature in which you can find, according to our study experience and know-how, the better relation price-quality-lifetime.
