UC 205 BHTS ZZ 350° Beco Plus


Country Of Origin: ITALY
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - BECO
Item Number - UC 205 BHTS ZZ 350° Beco Plus
Category - Insert Bearing for Extreme Temperature
Bore Diameter (B) mm - 25
Outer Diameter (D) mm - 52
Dimension (A) mm - 16 ± 1
Dimension (A1) mm - 14.3
Dimension (A2) mm - 19.8
N - M6x0.75
Weight (kg) - 0.3
Limiting Speed (RPM) - 280
Static Load at 350°C (kN) - 5.39
Static Load at 20°C (kN) - 7.8

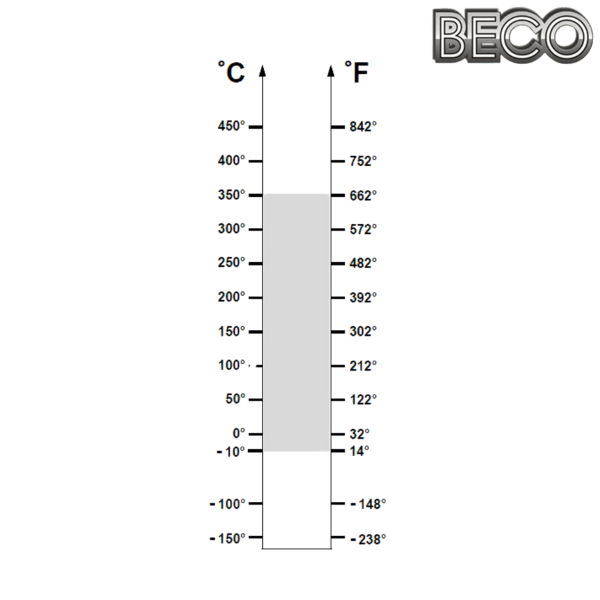

Operating Range - ‒10° / 350°C
Economic Operating Range - 250° / 350°C

---------------------------------------------------------
Bearing + Housing = Bearing Unit
---------------------------------------------------------
UC 205 BHTS ZZ 350° Beco Plus + PA 205 SS = UCPA 205 BHTS ZZ 350° Beco Plus
UC 205 BHTS ZZ 350° Beco Plus + F 205 SS = UCF 205 BHTS ZZ 350° Beco Plus
UC 205 BHTS ZZ 350° Beco Plus + FL 205 SS = UCFL 205 BHTS ZZ 350° Beco Plus
UC 205 BHTS ZZ 350° Beco Plus + P 205 SS = UCP 205 BHTS ZZ 350° Beco Plus
UC 205 BHTS ZZ 350° Beco Plus + T 205 SS = UCT 205 BHTS ZZ 350° Beco Plus

NOTE:
- Operating Range is the correct technical range in which can be used the bearing with good operating result
- Economic Operating Range is the range of temperature in which you can find, according to our study experience and know-how, the better relation price-quality-lifetime.

** Images are for representation purposes only
