UC 203 BSS 2RS NSF H1 BECO

Brand - BECO
Item Number - UC 203 BSS 2RS NSF H1 BECO
Category - Insert Bearing in Stainless Steel
Bore Diameter (B) mm - 17
Outer Diameter (D) mm - 47
Dimension (A) mm - 13 ± 2
Dimension (A1) mm - 11.5
Dimension (A2) mm - 15.9
N - M6x0.75
Weight (kg) - 0.17
Limiting Speed (RPM) - 1440
Static Load at 100°C (kN) - 5.94
Static Load at 20°C (kN) - 5.94

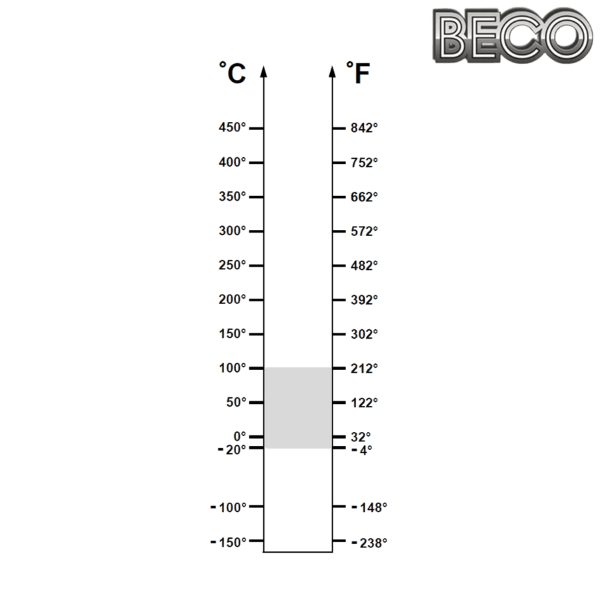

Operating Range - ‒20° / 100°C
Economic Operating Range - ‒20° / 100°C

--------------------------------------------------------------------------------------------------------------
Bearing + Housing = Bearing Unit
--------------------------------------------------------------------------------------------------------------
UC 203 BSS 2RS NSF H1 + PA 204 SS = UCPA 203 BSS 2RS NSF H1
UC 203 BSS 2RS NSF H1 + F 204 SS = UCF 203 BSS 2RS NSF H1
UC 203 BSS 2RS NSF H1 + FL 204 SS = UCFL 203 BSS 2RS NSF H1
UC 203 BSS 2RS NSF H1 + P 204 SS = UCP 203 BSS 2RS NSF H1
UC 203 BSS 2RS NSF H1 + PLASTIC HOUSING F PL 204 = UCF PL 203 BSS 2RS NSF H1
UC 203 BSS 2RS NSF H1 + PLASTIC HOUSING FL PL 204 = UCFL PL 203 BSS 2RS NSF H1
UC 203 BSS 2RS NSF H1 + PLASTIC HOUSING P PL 204 = UCP PL 203 BSS 2RS NSF H1

NOTE:
- Operating Range is the correct technical range in which can be used the bearing with good operating result
- Economic Operating Range is the range of temperature in which you can find, according to our study experience and know-how, the better relation price-quality-lifetime.
