UC 203 BHTS ZZ GR CG 350° BECO


Country Of Origin: ITALY
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - BECO
Item Number - UC 203 BHTS ZZ GR CG 350° BECO
Category - Insert Bearing for Extreme Temperature
Bore Diameter (B) mm - 17
Outer Diameter (D) mm - 47
Dimension (A) mm - 13 ± 2
Dimension (A1) mm - 11.5
Dimension (A2) mm - 15.9
N - M6x0.75
Weight (kg) - 0.17
Limiting Speed (RPM) - 75
Static Load at 350°C (kN) - 4.55
Static Load at 20°C (kN) - 6.6

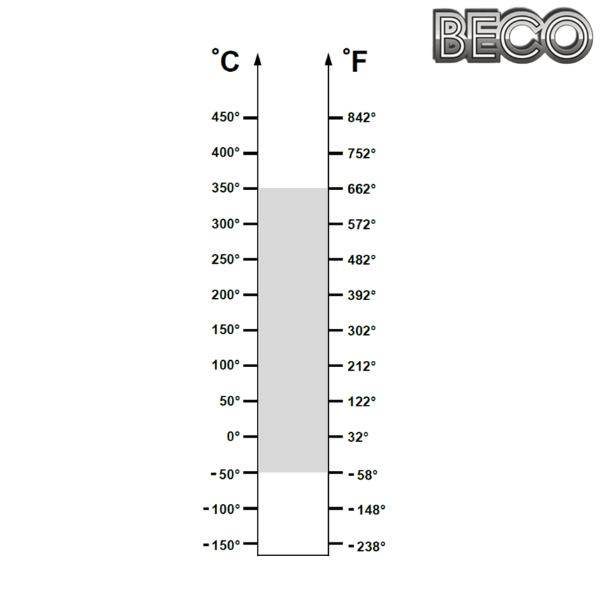

Operating Range - ‒50° / 350°C
Economic Operating Range - 250° / 350°C

---------------------------------------------------------
Bearing + Housing = Bearing Unit
---------------------------------------------------------
UC 203 BHTS ZZ GR CG 350° + PA 204 SS = UCPA 203 BHTS ZZ GR CG 350°
UC 203 BHTS ZZ GR CG 350° + F 204 SS = UCF 203 BHTS ZZ GR CG 350°
UC 203 BHTS ZZ GR CG 350° + FL 204 SS = UCFL 203 BHTS ZZ GR CG 350°
UC 203 BHTS ZZ GR CG 350° + P 204 SS = UCP 203 BHTS ZZ GR CG 350°

NOTE:
- Operating Range is the correct technical range in which can be used the bearing with good operating result
- Economic Operating Range is the range of temperature in which you can find, according to our study experience and know-how, the better relation price-quality-lifetime.

** Images are for representation purposes only
