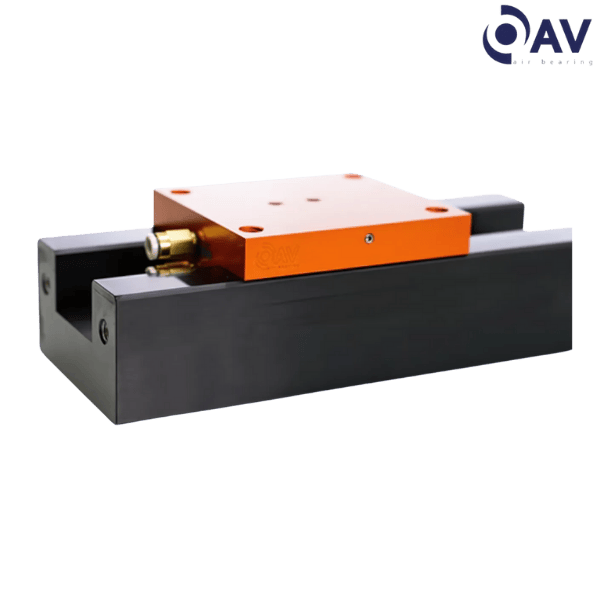

Description
Brand - OAV
Item Number - TS7575 OAV
Category - T-Series Rail Guide
Imperial :
Flatness (inch) - 0.00002
Carriage Weight (lb) - 0.24
Total Weight (lb) - 1.37 (100 mm travel)
Z direction Load (lb) - 90
Y direction Load (lb) - 20
Metric :
Flatness (mm) - 0.0005
Local Straightness as per 25 mm travel (µm) - 0.25
Maximum Error as per 1000 mm travel (µm) - 2

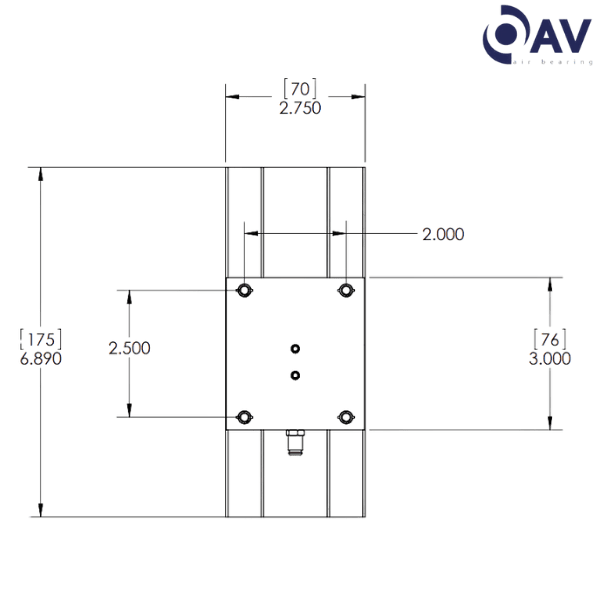

Carriage Size (mm) - 70 x 76
Travel (mm) - 100/200/300/Custom

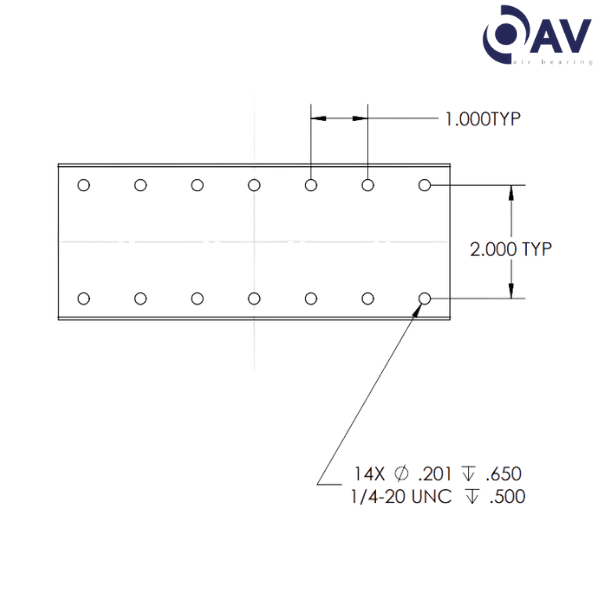

Guidebar Length (mm) - 190 /Custom

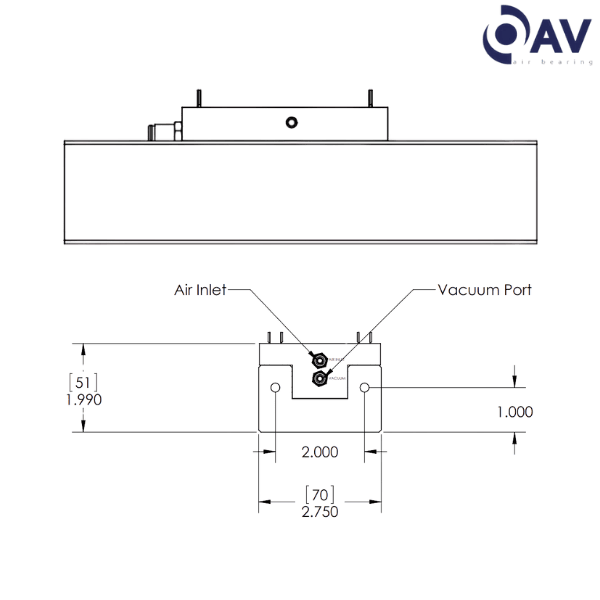

Assembly Height (mm) - 55
Carriage Weight (kg) - 0.11
Total Weight (kg) - 0.62 (100 mm travel)
Z direction Load (N) - 400
Y direction Load (N) - 88
Air Flow (NLPM) - 1.3
Pitch (N-m) - 11
Roll (N-m) - 19
Yaw (N-m) - 33
Y Stiffness (N/μ) - 28
Z Stiffness (N/μ) - 30
** Images are for representation purposes only
