Description
Brand - RBC
Item Number - TRTB921 RBC
Category - Tapered Roller Thrust Bearings
Cage Type - Brass Separator

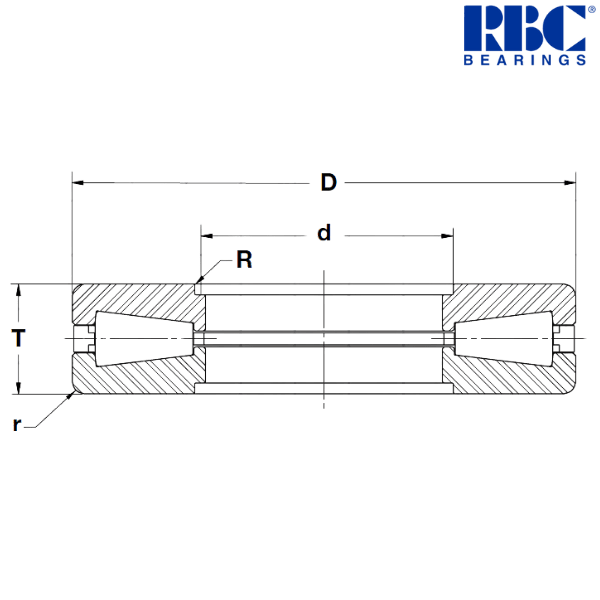

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (d) - 9.25 inch
Outer Diameter (D) - 21.5 inch
Stack Height (T) - 5 inch
Maximum Shaft Size (R) - 0.08 inch
Maximum Housing Diameter (r) - 0.63 inch
Static Capacity - 3378000 lbf
Dynamic Capacity - 1355000 lbf
API 8C Capacity - 356 tons
Bearing Weight - 347 lbs
Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 234.95 mm
Outer Diameter (D) - 546.1 mm
Stack Height (T) - 127 mm
Maximum Shaft Size (R) - 2 mm
Maximum Housing Diameter (r) - 16 mm
Static Capacity - 15026 kN
Dynamic Capacity - 6027 kN
Bearing Weight - 157 kg
Description of Suffixes and Prefixes :
TRTB - Tapered Roller Thrust Bearing
Other salient points to be noted:
• RBC manufactures a wide range of heavy-duty tapered roller thrust bearings, with bore sizes ranging from 1.75 inches (44.45 mm) to 16 inches (406.40 mm).
• These bearings are specifically engineered to perform reliably in demanding, high-load environments, such as oilfield top drives, swivels, extruders, and other rugged industrial applications.
• RBC’s TRTB Series tapered roller thrust bearings come with either bronze cages or pin-type cages, both designed to deliver substantially higher load capacity for heavily loaded applications.
• RBC offers TRTB Series tapered roller thrust bearings in MAX3™ steel, providing enhanced fatigue life for applications where increased durability is essential.
Key Benefits of RBC Heavy-Duty Tapered Roller Thrust Bearings :
• Fully interchangeable with standard industry bearings.
• Excellent resistance to shock loads, ensuring reliable performance in tough conditions.
• Versatile design — available with bore reliefs (standard on larger sizes, optional on smaller sizes) to accommodate a wide range of specialized applications.

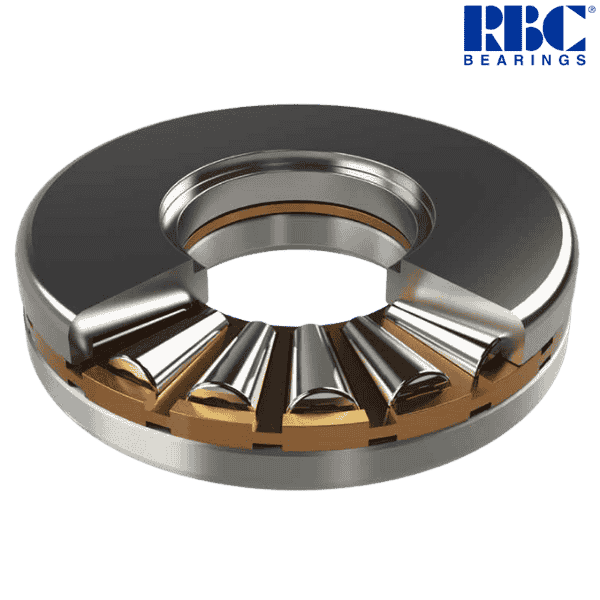

♦ ♦ Images are for representation purposes only
