Description
Brand - RBC
Item Number - TRTB76821VFMAX3 RBC
Category - V-Flat Tapered Roller Thrust Bearings
Cage Type - Pin Type
Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (d) - 13.3858 inch
Outer Diameter (D) - 21.2598 inch
Stack Height (T) - 4.783 inch
Thickness (T1) - 1.327 inch
Small Outer Diameter of Ring (D1) - 21.26 inch
Large Bore Diameter of Ring (d1) - 13.78 inch
Minimum Shoulder Diameter of Shaft (H) - 20.38 inch
Maximum Shoulder Diameter of Housing (E) - 14.51 inch
Maximum Fillet Radius of Shaft (R) - 0.2 inch
Maximum Fillet Radius of Housing (r) - 0.2 inch
Static Capacity - 4201000 lbf
Dynamic Capacity - 948000 lbf
API 8C Capacity - 346 tons
Bearing Weight - 238 lbs
Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 340 mm
Outer Diameter (D) - 540 mm
Stack Height (T) - 121.5 mm
Thickness (T1) - 33.71 mm
Small Outer Diameter of Ring (D1) - 540 mm
Large Bore Diameter of Ring (d1) - 350 mm
Minimum Shoulder Diameter of Shaft (H) - 517.5 mm
Maximum Shoulder Diameter of Housing (E) - 368.5 mm
Maximum Fillet Radius of Shaft (R) - 5.1 mm
Maximum Fillet Radius of Housing (r) - 5.1 mm
Static Capacity - 18687 kN
Dynamic Capacity - 4217 kN
Bearing Weight - 108 kg
Description of Suffixes and Prefixes :
• TRTB - Tapered Roller Thrust Bearing
• VF - V-Flat Configuration
• MAX3 - MAX3™ Steel Bearing
other salient points to be noted :
• RBC manufactures a comprehensive line of heavy-duty V-Flat tapered roller thrust bearings, with bore sizes ranging from 5 inches (127 mm) to 17 inches (431.8 mm). These bearings are specifically engineered for high-performance in extreme environments, making them ideal for tough applications such as oilfield top drives, swivels, extruders, and other heavy industrial uses.
• RBC’s TRTB-VF Series V-Flat tapered roller thrust bearings feature a unique design with one tapered raceway and one flat raceway. They include a pin-type cage and roller assembly with controlled-contour rollers, which optimize stress distribution across the contact surface. This advanced design delivers maximum load capacity within a compact envelope. Bearings in this series are available with either bronze or pin-type cages, both providing enhanced performance for heavily loaded applications.
• TRTB-VF Series V-Flat tapered roller thrust bearings from RBC are also offered in MAX3™ steel, delivering superior fatigue life for applications requiring increased durability and performance.
Advantages of RBC heavy-duty tapered roller thrust bearings :
• Interchangeable with Industry Standard Product Offerings
• High Shock Resistance
• Application Flexibility – Assemblies are available with bore reliefs on larger sizes, optional on smaller sizes – to fit a variety of unique applications.

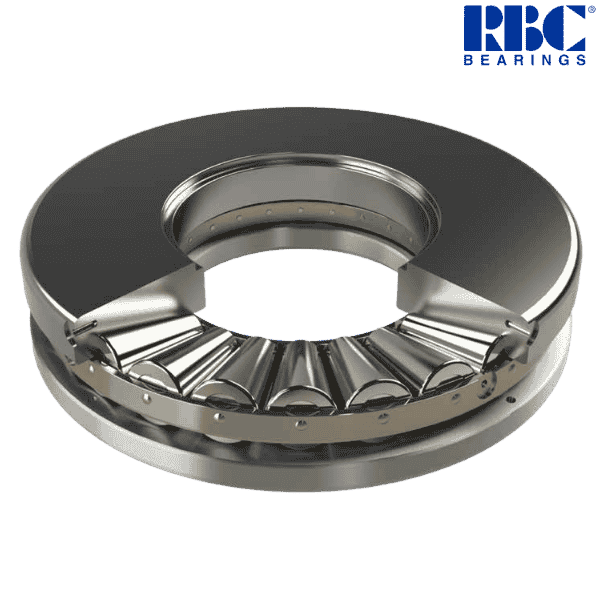

♦ ♦ Images are for representation purposes only
