TRI 13518860 IKO


Country Of Origin: JAPAN
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - IKO
Item Number - TRI 13518860 IKO
Also Known As - TRI13518860
Category - Machined Type Needle Roller Bearing with Inner Ring
Shaft Diameter (mm) - 135
Bore Diameter (d) mm - 135
Outer Diameter (D) mm - 188
Boundary Dimension (C) mm - 60
Boundary Dimension (B) mm - 60.5
Minimum Boundary Dimension (rs) mm - 1.5
Boundary Dimension (Fw) mm - 150
Boundary Dimension (S) mm - 2.5

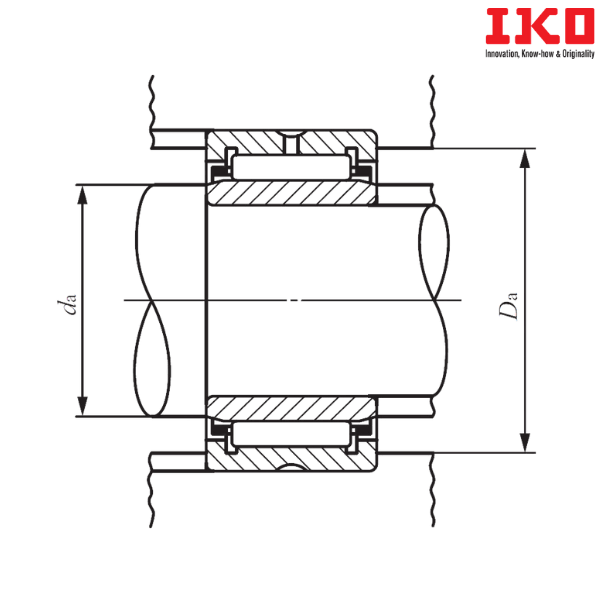

Minimum Standard Mounting Dimension (da) mm - 143
Maximum Standard Mounting Dimension (da) mm - 148
Maximum Standard Mounting Dimension (Da) mm - 180
Basic Dynamic Load Rating (C) N - 320000
Basic Static Load Rating (C0) N - 675000
Allowable Rotational Speed (min-1) - 2500
Assembled Inner Ring - LRT 13515060
Weight (kg) - 5.1

** Images are for representation purposes only
