Description
Brand - ZEN
Item Number - TPL210 ZEN

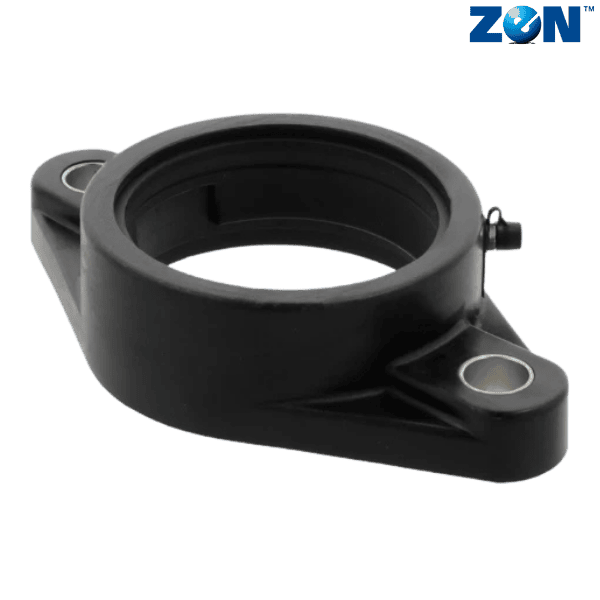

Category - Thermoplastic Pillow Blocks (TPL)
Inner Diameter (d) mm - 50
a (mm) - 149
c (mm) - 35.5
b (mm) - 16
h (mm) - 90
m (mm) - 102
t (mm) - 50
v (mm) - 117
w (mm) - 85
Bi (mm) - 51.6
n (mm) - 19
s (mm) - M20
Weight (kg) - 0.47
** Images are for representation purposes only
