Description

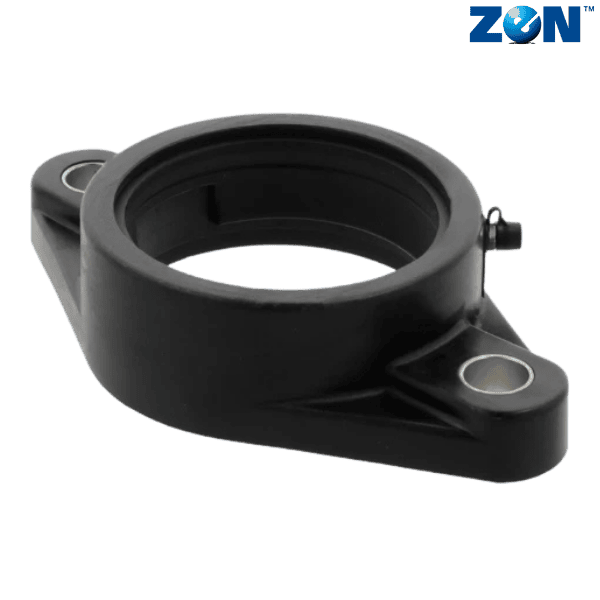

Brand - ZEN
Item Number - TPL208 ZEN
Category - Thermoplastic Pillow Blocks (TPL)
Inner Diameter (d) mm - 40
a (mm) - 140
c (mm) - 29
b (mm) - 16
h (mm) - 85
m (mm) - 102
t (mm) - 40
v (mm) - 113
w (mm) - 80
Bi (mm) - 49.2
n (mm) - 19
s (mm) - M16
Weight (kg) - 0.36
** Images are for representation purposes only
