Description
Brand - ZEN

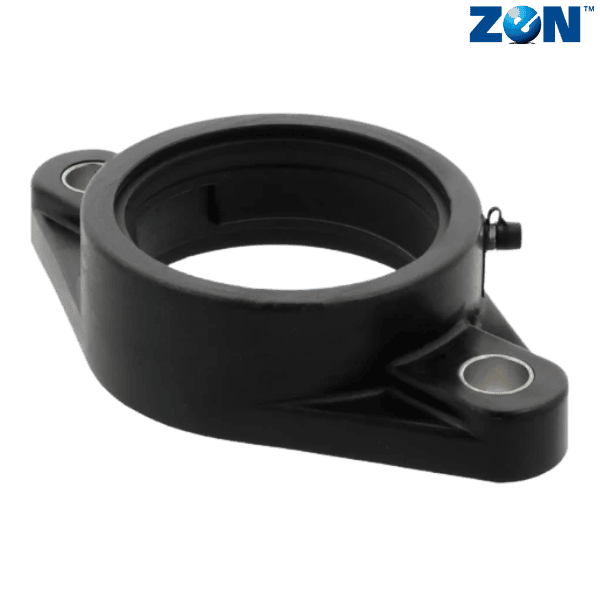

Item Number - TPL206 ZEN
Category - Thermoplastic Pillow Blocks (TPL)
Inner Diameter (d) mm - 30
a (mm) - 125
c (mm) - 27.5
b (mm) - 12
h (mm) - 76
m (mm) - 89
t (mm) - 40
v (mm) - 101
w (mm) - 63
Bi (mm) - 38.4
n (mm) - 15.9
s (mm) - M16
Weight (kg) - 0.27
** Images are for representation purposes only
