Description
Brand - ZEN
Item Number - TPA210 ZEN
Category - Thermoplastic Pillow Blocks (TPA)

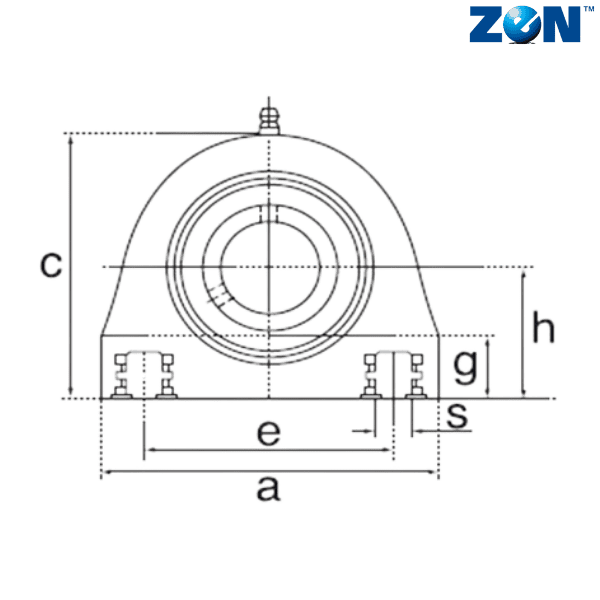

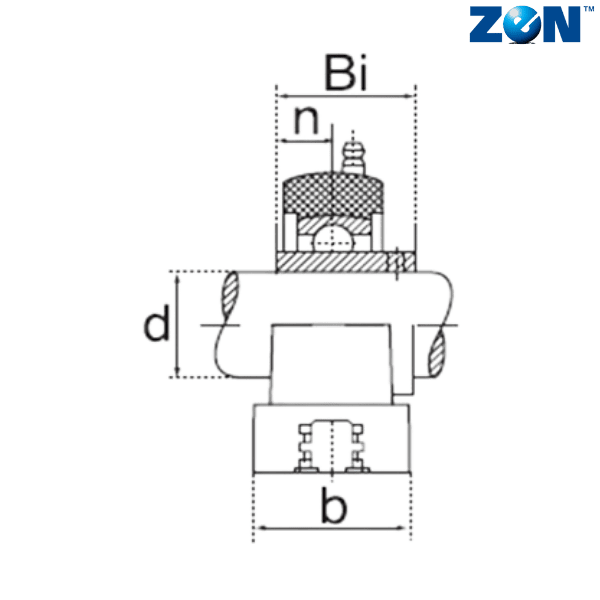

Inner Diameter (d) mm - 50
Overall Length (a) mm - 130
Bolt Center to Center Length (e) mm - 94
Base to Center Height (h) mm - 57.2
b (mm) - 60
Bolr Diameter (s) - M16
Overall Height (c) mm - 116
Bi (mm) - 51.6
n (mm) - 19
g (mm) - 22
Weight (kg) - 0.45
Bearing - SUC210

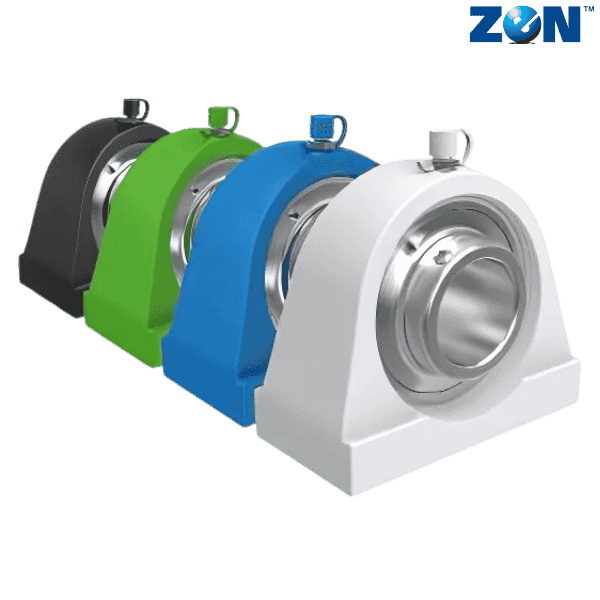

** Images are for representation purposes only
