Description
Brand - ZEN
Item Number - TPA209 ZEN
Category - Thermoplastic Pillow Blocks (TPA)

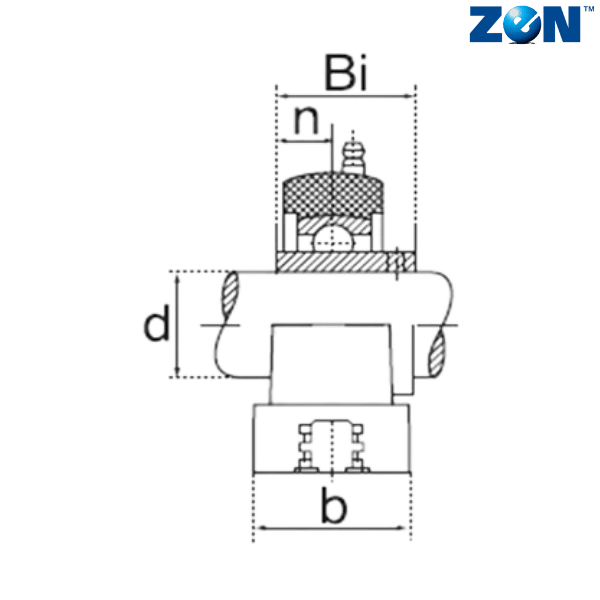

Inner Diameter (d) mm - 45

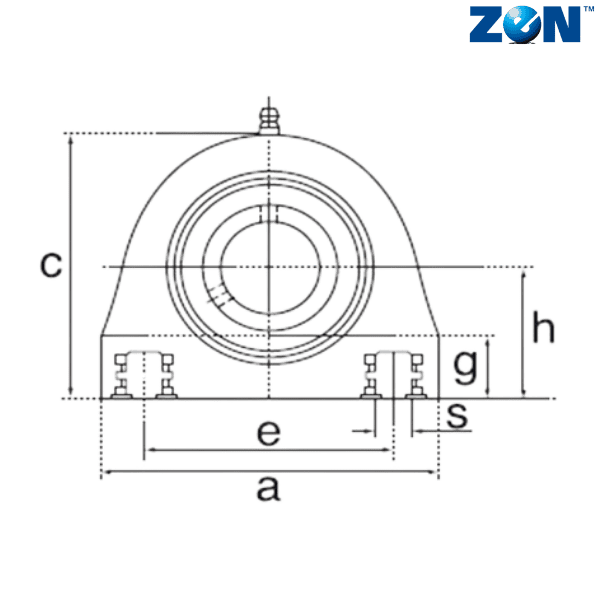

Overall Length (a) mm - 120
Bolt Center to Center Length (e) mm - 90
Base to Center Height (h) mm - 54.2
b (mm) - 54
Bolr Diameter (s) - M12
Overall Height (c) mm - 108
Bi (mm) - 49.2
n (mm) - 19
g (mm) - 20
Weight (kg) - 0.35
Bearing - SUC209

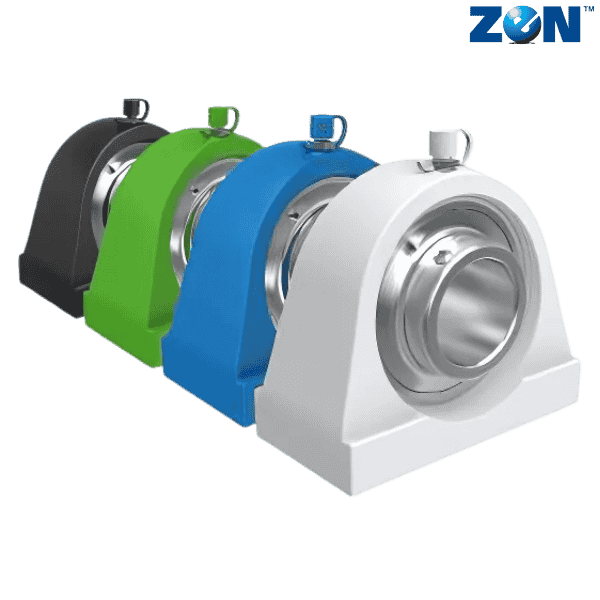

** Images are for representation purposes only
