Description
Brand - ZEN
Item Number - TPA207 ZEN
Category - Thermoplastic Pillow Blocks (TPA)

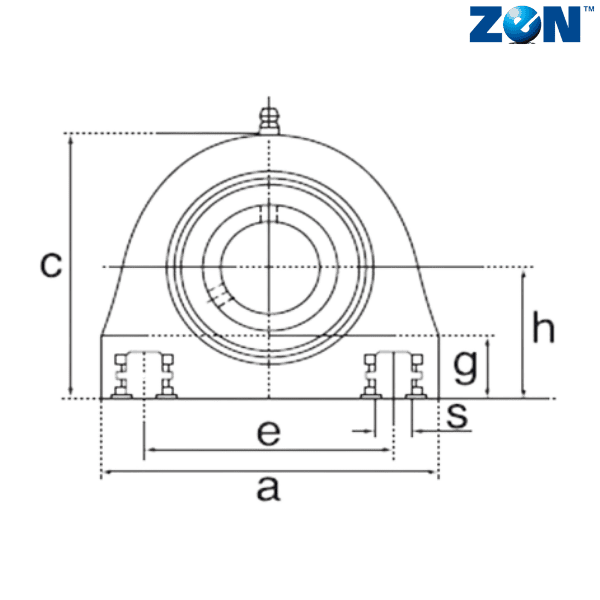

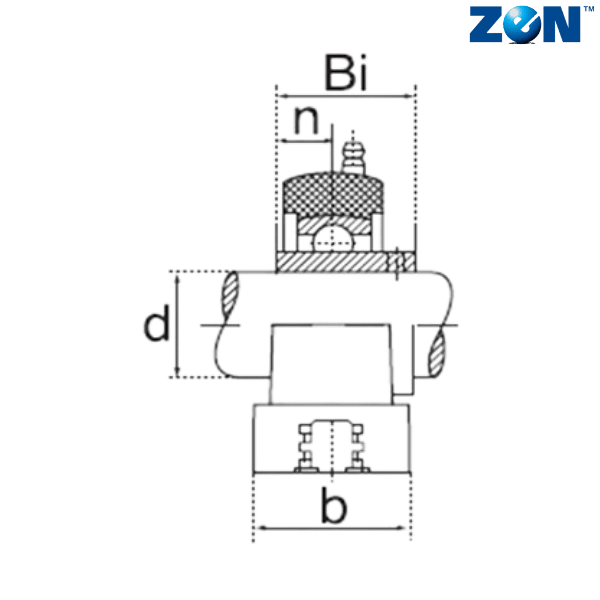

Inner Diameter (d) mm - 35
Overall Length (a) mm - 110
Bolt Center to Center Length (e) mm - 80
Base to Center Height (h) mm - 47.6
b (mm) - 48
Bolr Diameter (s) - M10
Overall Height (c) mm - 95
Bi (mm) - 49.2
n (mm) - 17.5
g (mm) - 18
Weight (kg) - 0.26
Bearing - SUC207

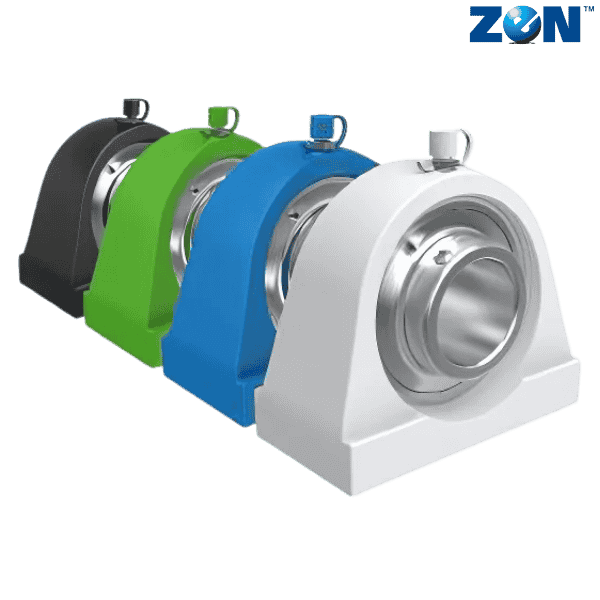

** Images are for representation purposes only
