Description
Brand - ZEN
Item Number - TPA206 ZEN
Category - Thermoplastic Pillow Blocks (TPA)

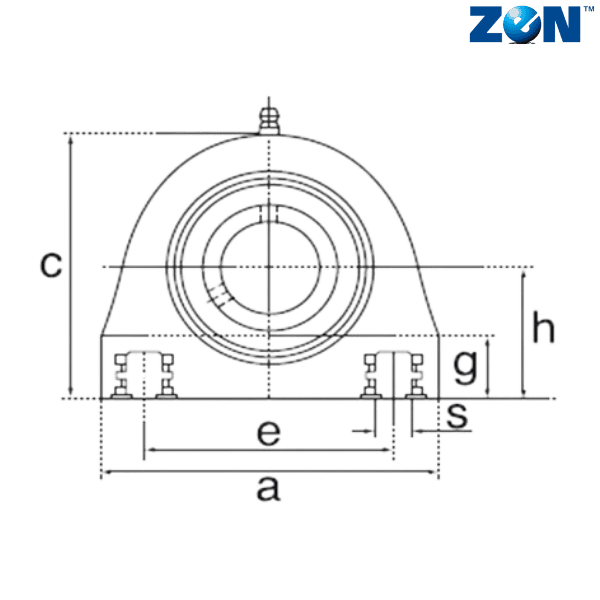

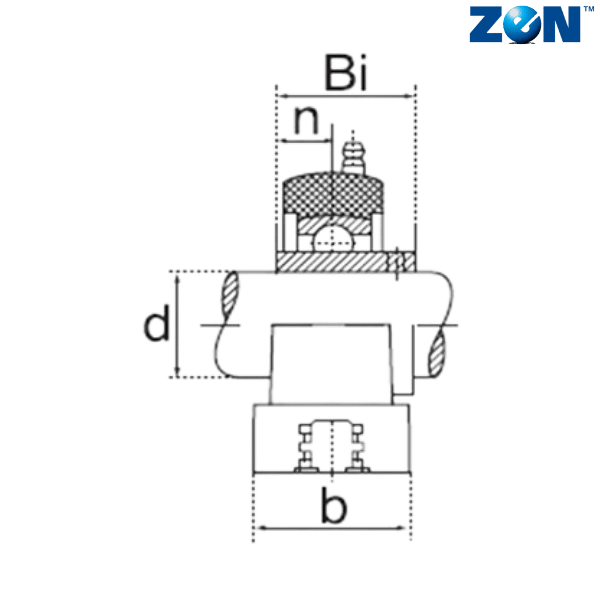

Inner Diameter (d) mm - 30
Overall Length (a) mm - 94
Bolt Center to Center Length (e) mm - 66
Base to Center Height (h) mm - 42.9
b (mm) - 48
Bolr Diameter (s) - M10
Overall Height (c) mm - 84
Bi (mm) - 38.1
n (mm) - 15.9
g (mm) - 16
Weight (kg) - 0.18
Bearing - SUC206

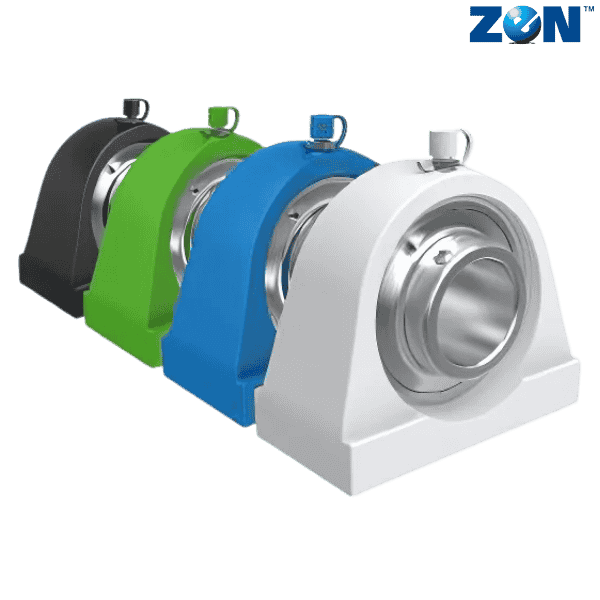

** Images are for representation purposes only
