Description
Brand - ZEN
Item Number - TPA205 ZEN
Category - Thermoplastic Pillow Blocks (TPA)

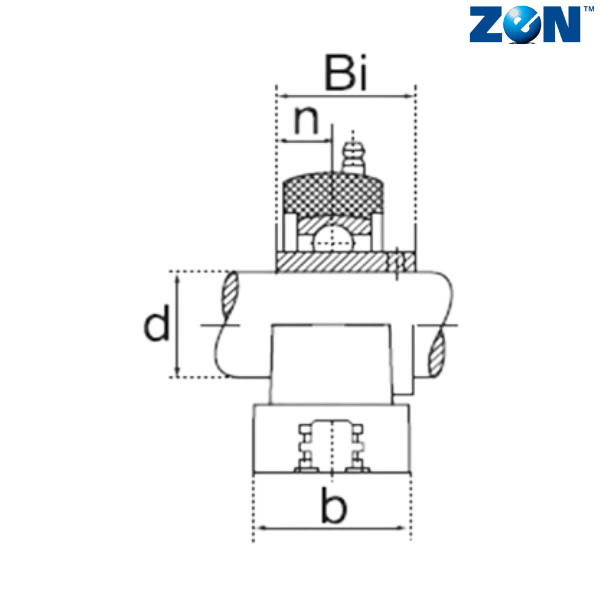

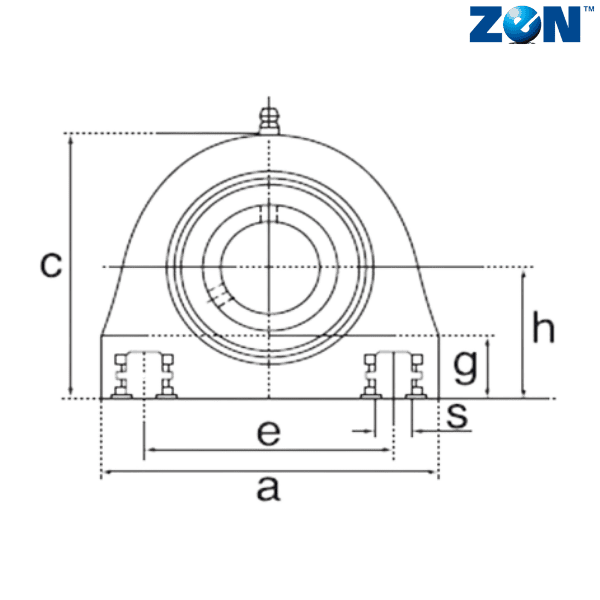

Inner Diameter (d) mm - 25
Overall Length (a) mm - 84
Bolt Center to Center Length (e) mm - 56
Base to Center Height (h) mm - 36.5
b (mm) - 38
Bolr Diameter (s) - M10
Overall Height (c) mm - 72
Bi (mm) - 34.1
n (mm) - 14.3
g (mm) - 13
Weight (kg) - 0.12
Bearing - SUC205

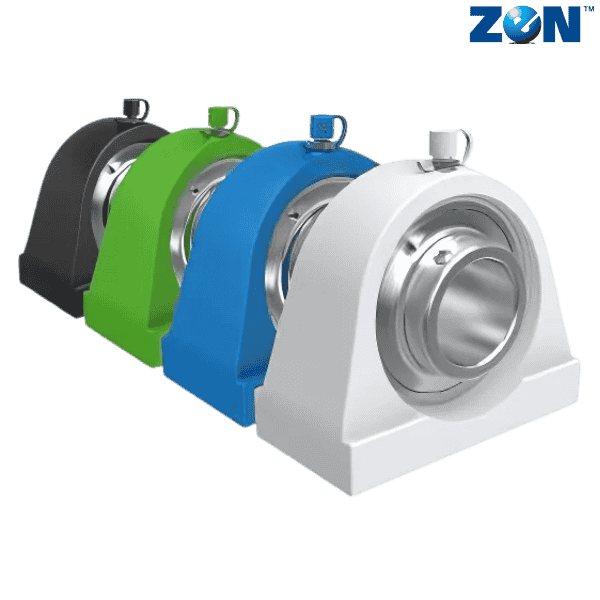

** Images are for representation purposes only
