Description
Brand - ZEN
Item Number - TPA204 ZEN
Category - Thermoplastic Pillow Blocks (TPA)

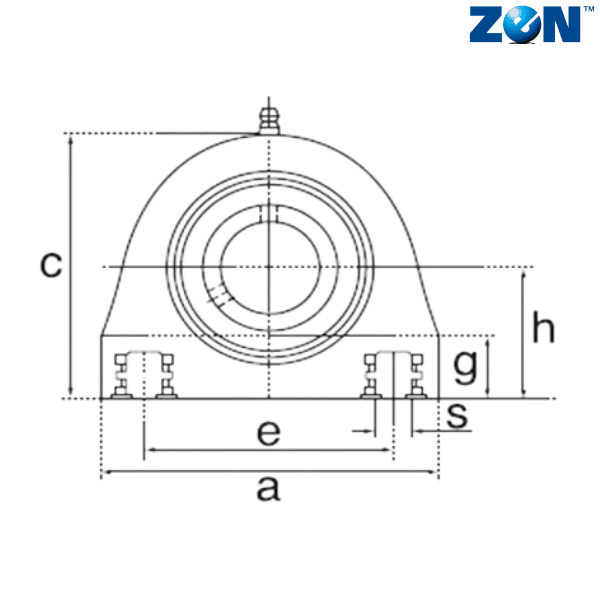

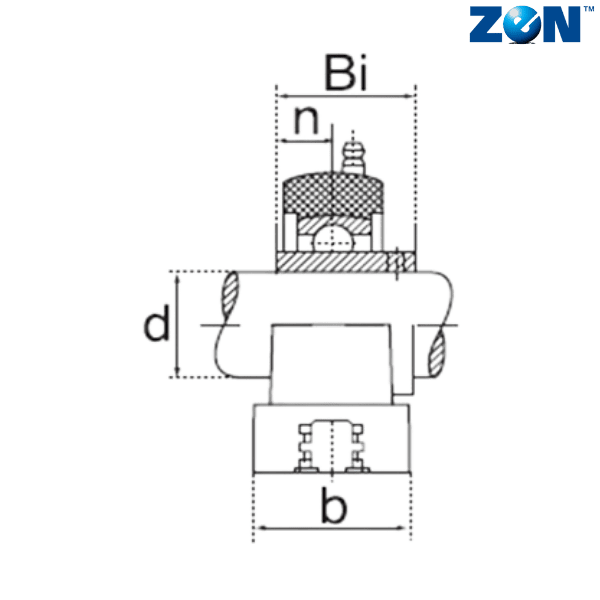

Inner Diameter (d) mm - 20
Overall Length (a) mm - 76
Bolt Center to Center Length (e) mm - 52
Base to Center Height (h) mm - 33.3
b (mm) - 38
Bolr Diameter (s) - M8
Overall Height (c) mm - 64
Bi (mm) - 31
n (mm) - 12.7
g (mm) - 13
Weight (kg) - 0.09
Bearing - SUC204

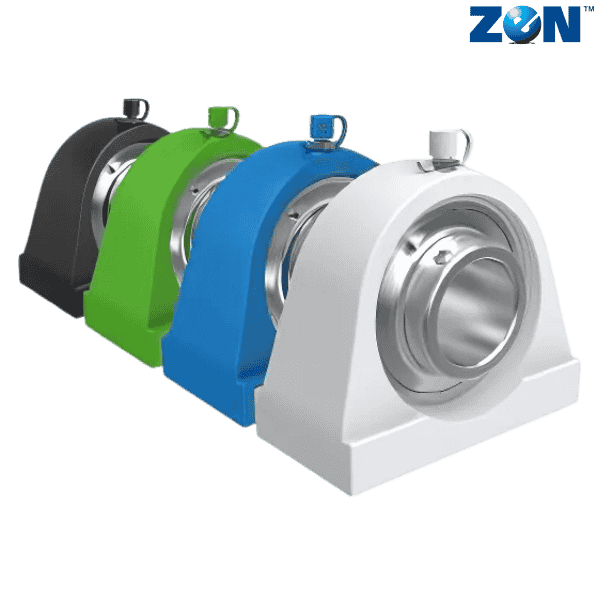

** Images are for representation purposes only
