Description
Brand - ZEN
Item Number - TP212 ZEN
Category - Thermoplastic Pillow Blocks (TP)

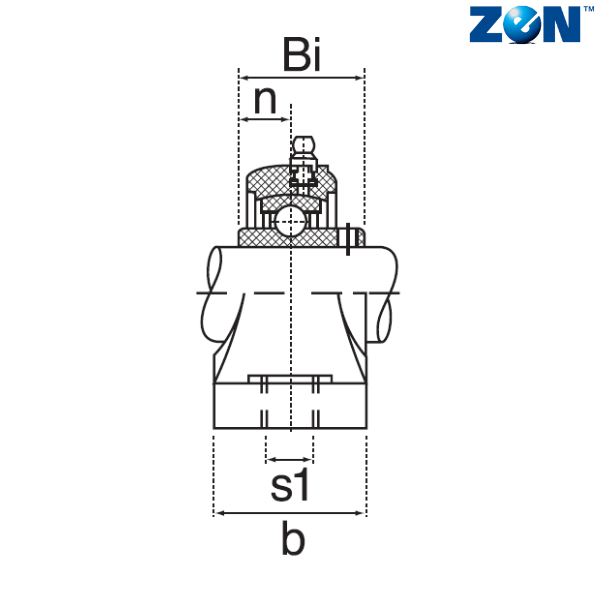

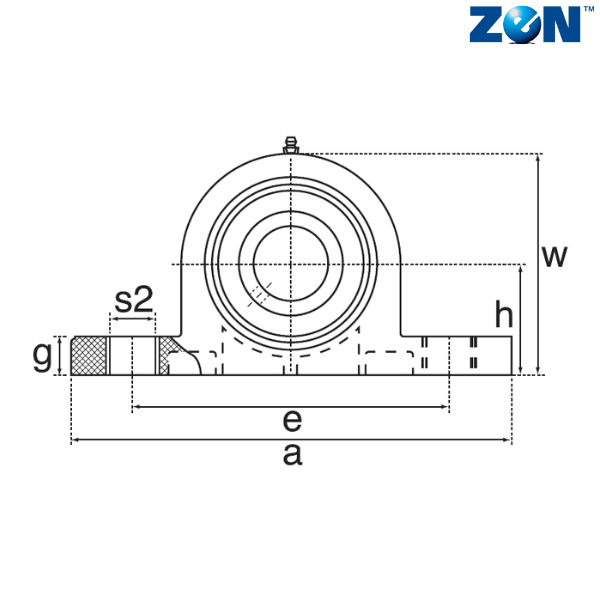

Base to Center Height (h) mm - 69.5
Overall Length (mm) - 241
Bolt Center to Center Length (e) mm - 184
b (mm) - 70
S1 (mm) - 20
S2 (mm) - 23
g (mm) - 25
Overall Height (w) mm - 138
Bi (mm) - 65.1
n (mm) - 25.4
Weight (kg) - 1.52
Bearing - SUC212

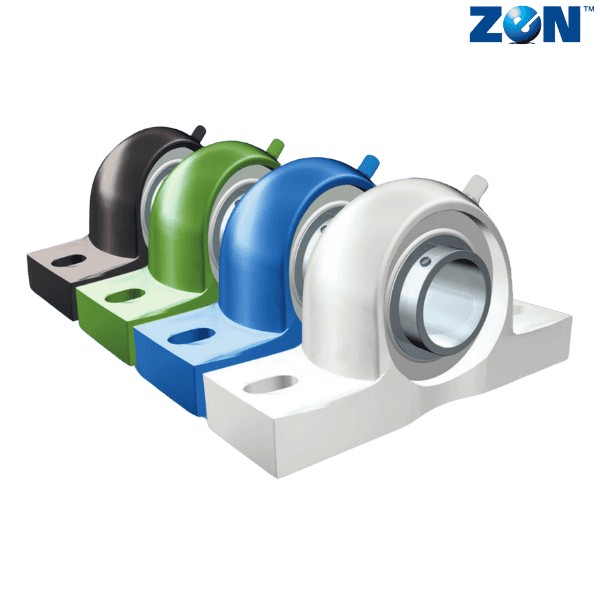

** Images are for representation purposes only
