Description
Brand - ZEN
Item Number - TP210 ZEN
Category - Thermoplastic Pillow Blocks (TP)

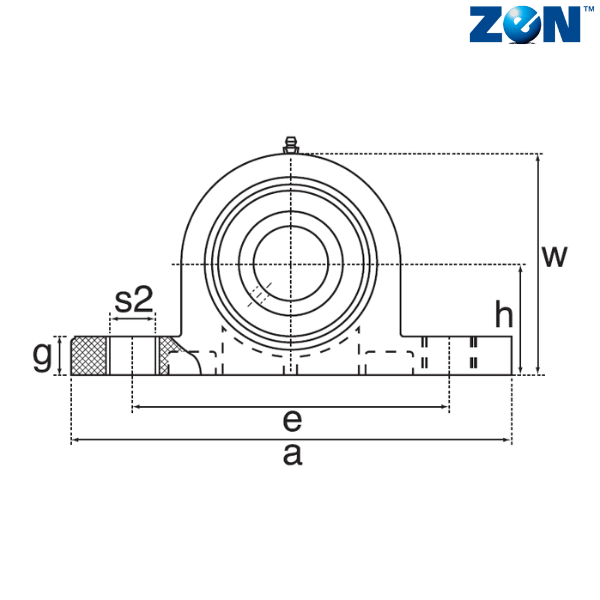

Base to Center Height (h) mm - 57.2
Overall Length (mm) - 206
Bolt Center to Center Length (e) mm - 159

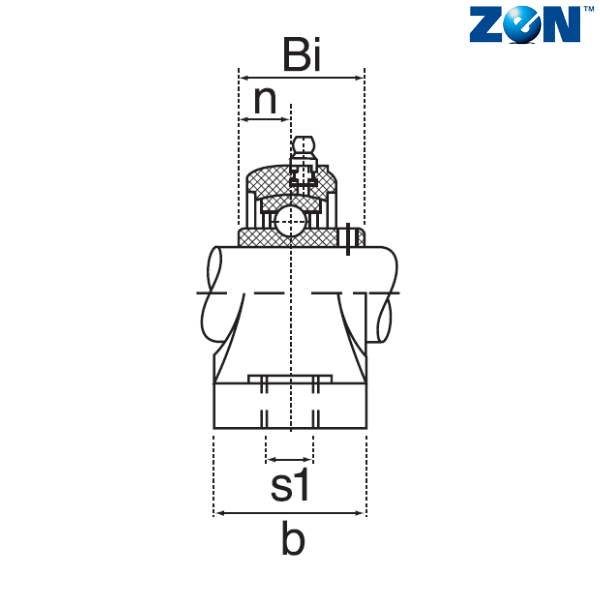

b (mm) - 60
S1 (mm) - 17
S2 (mm) - 20
g (mm) - 23
Overall Height (w) mm - 114
Bi (mm) - 51.6
n (mm) - 19
Weight (kg) - 0.55
Bearing - SUC210

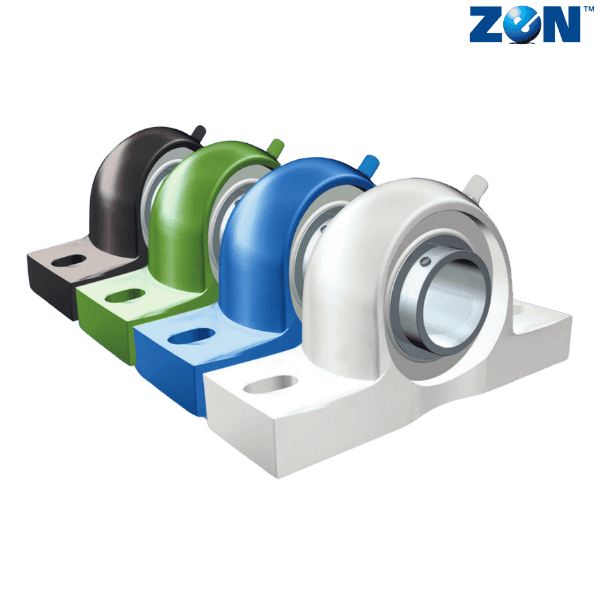

** Images are for representation purposes only
