Description
Brand - ZEN
Item Number - TP209 ZEN
Category - Thermoplastic Pillow Blocks (TP)

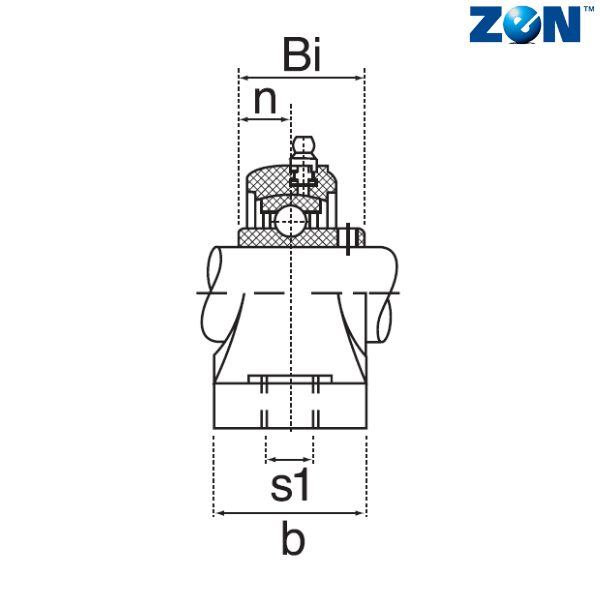

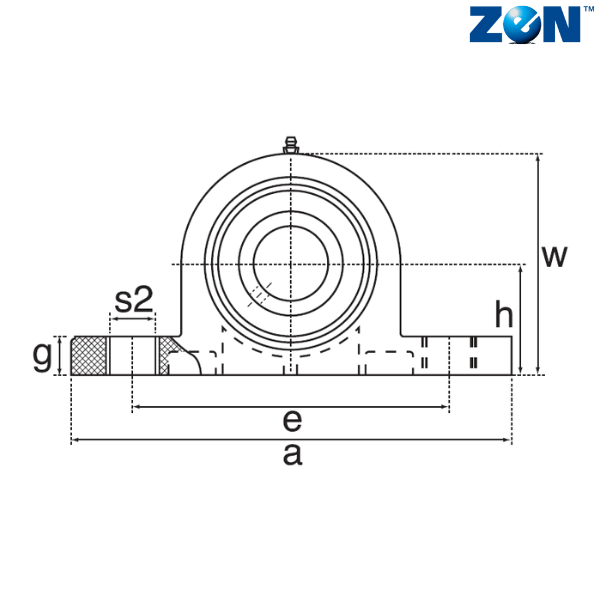

Base to Center Height (h) mm - 54
Overall Length (mm) - 192
Bolt Center to Center Length (e) mm - 146
b (mm) - 54
S1 (mm) - 17
S2 (mm) - 20
g (mm) - 23
Overall Height (w) mm - 106
Bi (mm) - 49.2
n (mm) - 19
Weight (kg) - 0.45
Bearing - SUC209
** Images are for representation purposes only
