Description
Brand - ZEN
Item Number - TP208 ZEN
Category - Thermoplastic Pillow Blocks (TP)

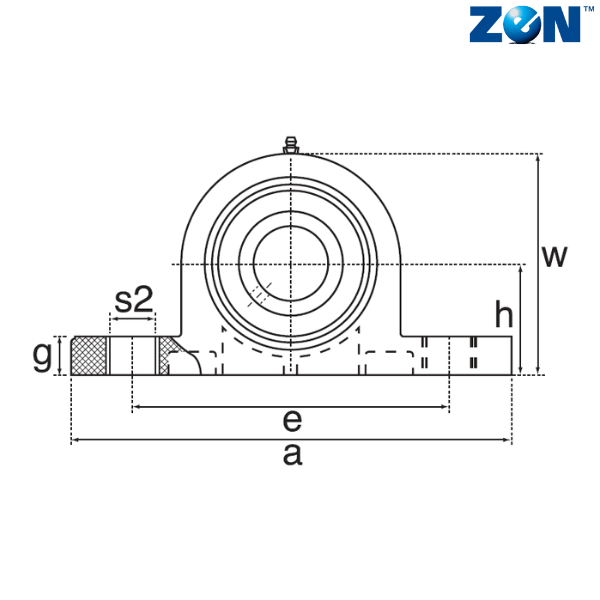

Base to Center Height (h) mm - 49.2
Overall Length (mm) - 184
Bolt Center to Center Length (e) mm - 137

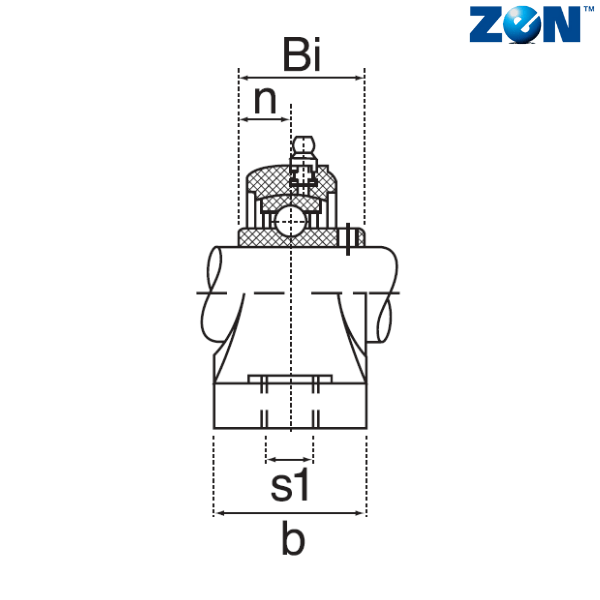

b (mm) - 54
S1 (mm) - 14
S2 (mm) - 18
g (mm) - 19.5
Overall Height (w) mm - 101
Bi (mm) - 49.2
n (mm) - 19
Weight (kg) - 0.35
Bearing - SUC208

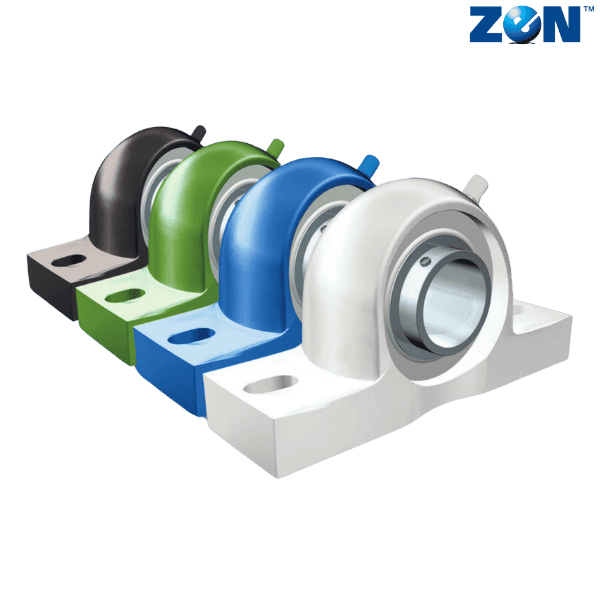

** Images are for representation purposes only
