Description
Brand - ZEN
Item Number - TP207 ZEN
Category - Thermoplastic Pillow Blocks (TP)

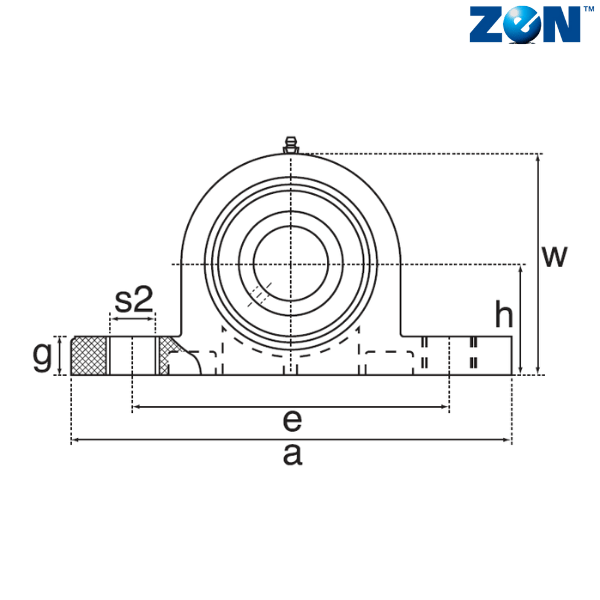

Base to Center Height (h) mm - 47.6
Overall Length (mm) - 168
Bolt Center to Center Length (e) mm - 127

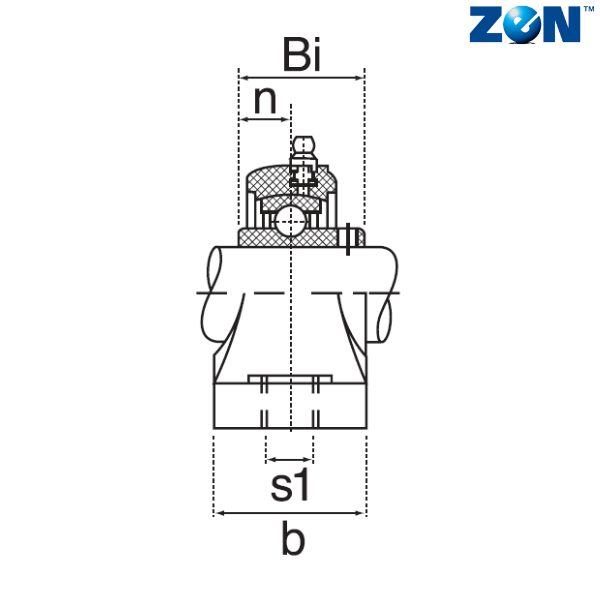

b (mm) - 48
S1 (mm) - 14
S2 (mm) - 18
g (mm) - 18
Overall Height (w) mm - 94.5
Bi (mm) - 42.9
n (mm) - 17.5
Weight (kg) - 0.25
Bearing - SUC207

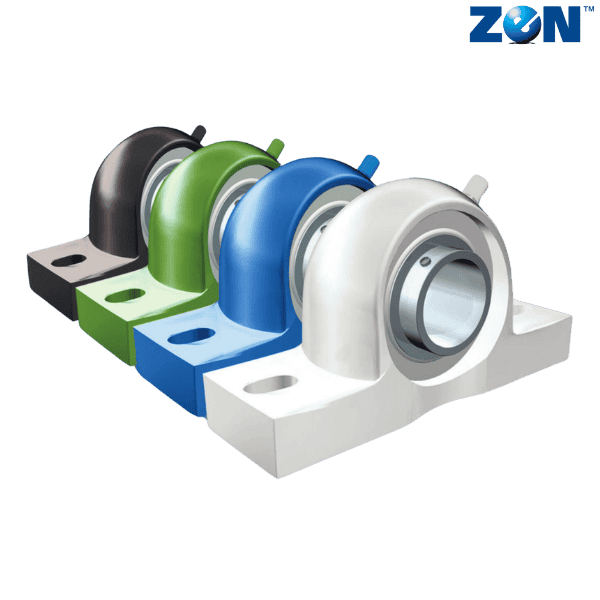

** Images are for representation purposes only
