Description
Brand - ZEN
Item Number - TP206 ZEN
Category - Thermoplastic Pillow Blocks (TP)

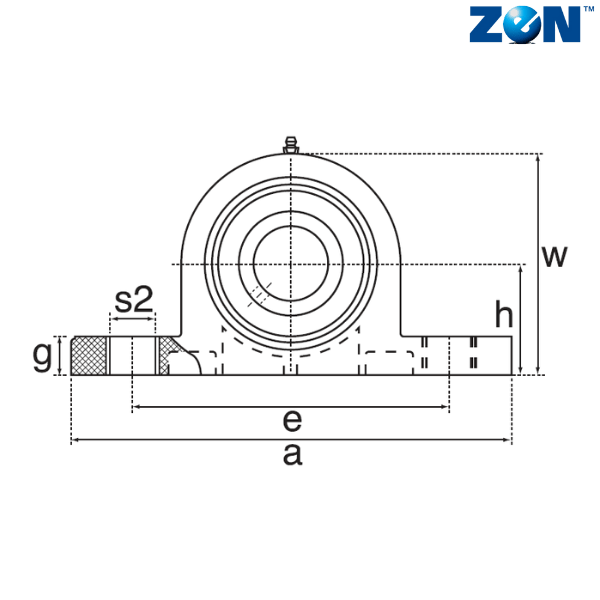

Base to Center Height (h) mm - 42.9
Overall Length (mm) - 163
Bolt Center to Center Length (e) mm - 119

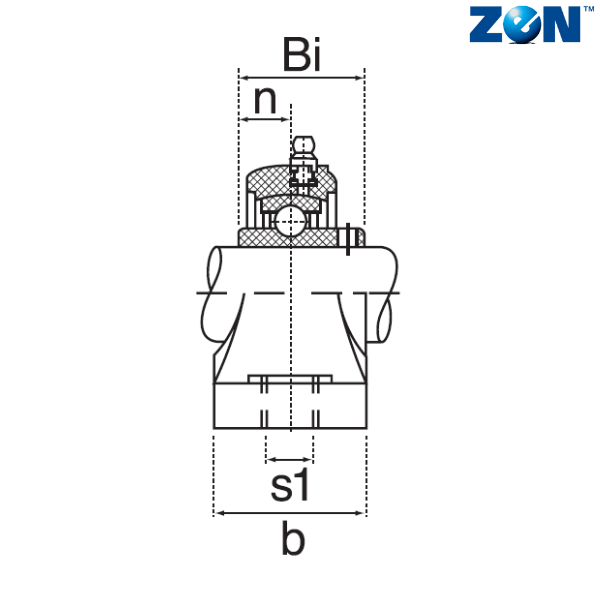

b (mm) - 46
S1 (mm) - 14
S2 (mm) - 18
g (mm) - 17.8
Overall Height (w) mm - 84
Bi (mm) - 38.1
n (mm) - 15.9
Weight (kg) - 0.2
Bearing - SUC206

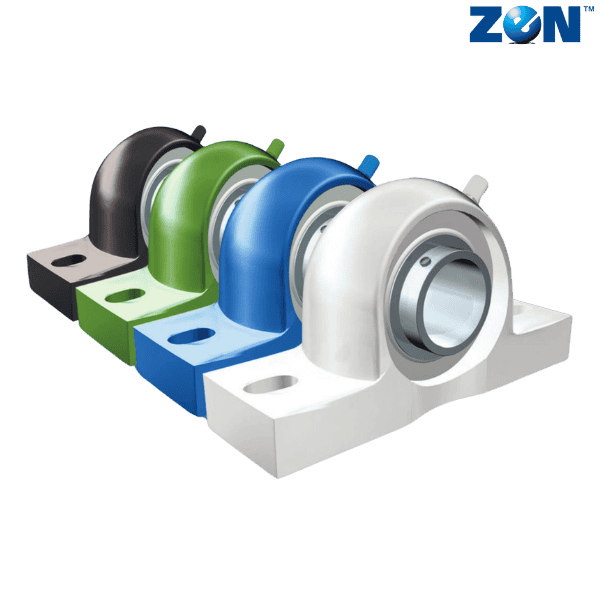

** Images are for representation purposes only
