Description
Brand - ZEN
Item Number - TP205 ZEN
Category - Thermoplastic Pillow Blocks (TP)

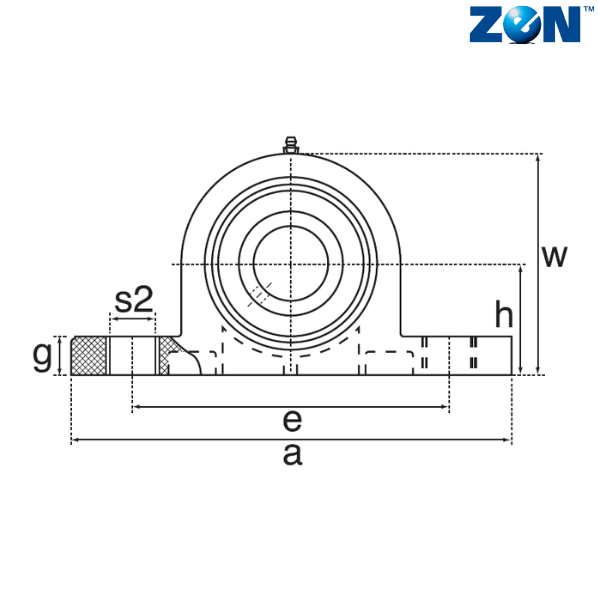

Base to Center Height (h) mm - 36.5
Overall Length (mm) - 140.6
Bolt Center to Center Length (e) mm - 105

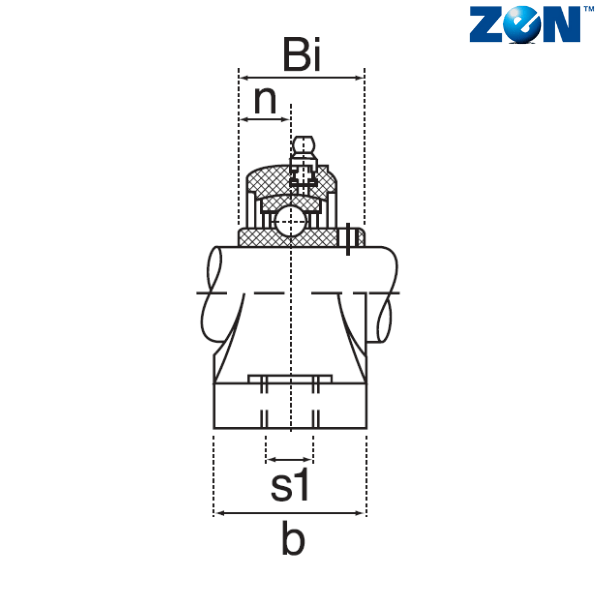

b (mm) - 38
S1 (mm) - 11
S2 (mm) - 14
g (mm) - 14.5
Overall Height (w) mm - 71
Bi (mm) - 34
n (mm) - 14.3
Weight (kg) - 0.14
Bearing - SUC205

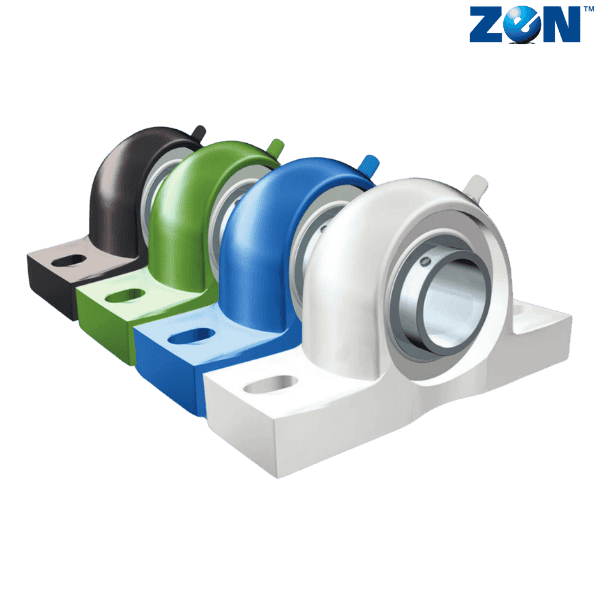

** Images are for representation purposes only
